10T CE ISO Boxed Up Hydraulic Dock Leveler Adjustable Yard Ramp

China 10T CE ISO Boxed Up Hydraulic Dock Leveler Adjustable Yard Ramp supplier
10T CE ISO Boxed Up Hydraulic Dock Leveler Adjustable Yard Ramp supplier 10T CE ISO Boxed Up Hydraulic Dock Leveler Adjustable Yard Ramp supplier 10T CE ISO Boxed Up Hydraulic Dock Leveler Adjustable Yard Ramp supplier 10T CE ISO Boxed Up Hydraulic Dock Leveler Adjustable Yard Ramp supplier

Large Image :  10T CE ISO Boxed Up Hydraulic Dock Leveler Adjustable Yard Ramp

Product Details:

Place of Origin: China
Brand Name: Haide
Certification: CE/ISO
Model Number: HD-HGT10-B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation(EXW,FOB or CIF price)
Packaging Details: film,and put it directly to container.
Delivery Time: 25 days
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Total Width: 2500mm Height: 1250mm
Dock Leveler: 6ft*8ft Standard Dynamic Capacity: 10 Ton
Adjust Range: +300mm/-300mm Main Deck Thickness: 8mm
Lip Board Thickness: 16mm Power Pack: Italy "Hydr-app" 0.75KW


10T CE ISO Boxed Up Hydraulic Dock Leveler Adjustable Yard Ramp



Description:

In some wearhouse dock,usually do not have enough space to prepare a pit for dockleveler.

Or in some old wearhouse,when build the wearhouse,still relied labor force for loading&unloading,did not consider equipments for convenience of loading&unloading.Now labor force cost higher,so need to prepare dock leveler for the wearhouse.

In above case,can use boxed up dockleveler to improve the loading&unloading efficiency.

With These boxed up docklevelers,customer forklift can be driven into all truck compartments & containers for loading & unloading.

1. One main cylinders and one lip cylinder for the dock leveler.

2. Power pack also big power motor (Italy "Hydr-app" 1.5KW).
3. We can manufacture the boxed up Hydraulic dock leveler with capacity from 10 ton to 25 ton.
4. Operation process: Push "UP" button, platform begin to rise. When it rise to highest point, push "EXTEND" button, lip extend out. Then press "DOWN" button, platform and lip lower down to rest on the truck box bed. When loading&unloading is over, then press "UP" botton, platform and lip begin to rise. When platform and lip get away from the truck box bed, then press "RETRACTION" button, lip retract. The push "DOWN" button, then dock leveler restore to original stored position.
5. We will prepared two laminated bumper for all the boxed up dock levelers we supply.


Specifications:
-Specification of the bracket:
Width:2500mm
Height:1250mm(usually 1200~1300mm,if the original dock is lower,we will prepare a lip-ramp to connect the dock to dock leveler)
Bracket weight:800kg

-Specification of the dock leveler:
Equipment Specification(W*L*H): 1830mm*2440mm*490mm
Pit Dimension(W*L*H): 1870mm*L2280mm*500mm
Dynamic Capacity: 10 ton
Adjust range: +300mm/-300mm
Main deck thickness: 8mm
Lip board thickness: 16mm
Power pack: : Italy "Hydr-APP" 0.75 KW 340~415V 3P 50&60Hz
Warranty: 365 days after installation for all, 5 years warranty for the steel structure.


All our standard dock leveler dimensions:

Model Specification(W*L*H)mm Pit Dimension(W*L*H)mm Adjust range Lip board(W*L*T)
6*6 1830*1830*490 1870*1680*500 +250mm/-200mm 1830*400*15
6.5*6 1980*1830*490 2020*1680*500 1980*400*15
7*6 2130*1830*490 2170*1680*500 2130*400*15
6*8 1830*2440*490(590) 1870*2280*500(600) +300mm/-300mm 1830*400*15
6.5*8 1980*2440*490(590) 2020*2280*500(600) 1980*400*15
7*8 2130*2440*490(590) 2170*2280*500(600) 2130*400*15
6*10 1830*3050*490(590) 1870*2880*500(600) +400mm/-300mm
If the height is 590mm:
+450mm/-350mm
1830*400*15
6.5*10 1980*3050*490(590) 2020*2880*500(600) 1980*400*15
7*10 2130*3050*490(590) 2170*2880*500(600) 2130*400*15

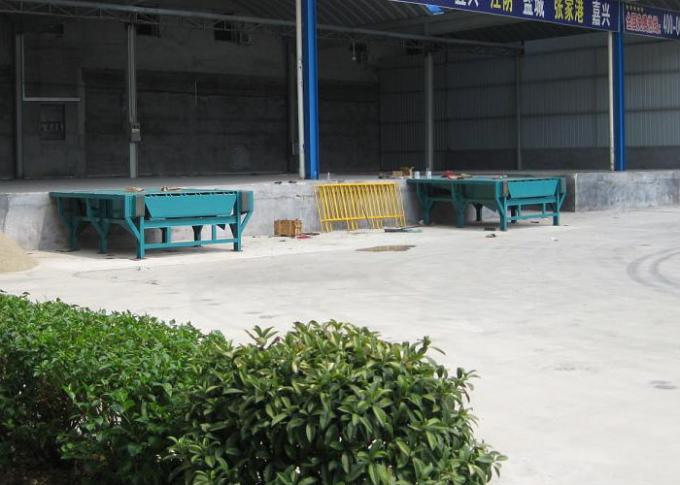

Our boxed up dock leveler project:
10T CE ISO Boxed Up Hydraulic Dock Leveler Adjustable Yard Ramp
