4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier

China 4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier supplier
4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier supplier 4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier supplier 4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier supplier 4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier supplier

Large Image :  4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier

Product Details:

Place of Origin: China
Brand Name: Haide
Certification: CE/ISO
Model Number: HD-HGT10-L4200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation(EXW,FOB or CIF price)
Packaging Details: film,and put it directly to container.
Delivery Time: 25 days
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Platform Width: 2000mm Platform Length: 4200mm
Height: 490mm Dynamic Capacity: 10 Ton
Adjust Range: +600mm/-300mm Main Deck Thickness: 8mm
Lip Board Thickness: 16mm Power Pack: Italy "Hydr-app" 1.5KW



4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier





Specifications:

Specification of this dock leveler:

Equipment Specification(W*L*H): 2000mm*4200mm*490mm
Pit Dimension(W*L*H): 2040mm*L4180mm*500mm
Dynamic Capacity: 10 ton
Adjust range: +600mm/-300mm
Main deck thickness: 8mm
Lip board thickness: 16mm
Power pack: : Italy "Hydr-APP" 1.5 KW 340~415V 3P 50&60Hz
Warranty: 365 days after installation for all, 5 years warranty for the steel structure.





Description:



We can customize all kinds of  hydraulic dock levelers for customers.



This big size dock leveler,we customize for an UAE customer.Customer's wearhouse dock height only 1100mm,but the container truck floor is 1500~1600mm,so we customize this big size dockleveler for his wearhouse.



With These docklevelers,customer forklift can be driven into all truck compartments & containers for loading & unloading.



1. two cylinders design for big size dock leveler.

4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier



2. Power pack also big power motor (Italy "Hydr-app" 1.5KW).

4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier


3. We can manufacture the Hydraulic dock leveler with capacity from 10 ton to 25 ton.

4. Operation process: Push "UP" button, platform begin to rise. When it rise to highest point, push "EXTEND" button, lip extend out. Then press "DOWN" button, platform and lip lower down to rest on the truck box bed. When loading&unloading is over, then press "UP" botton, platform and lip begin to rise. When platform and lip get away from the truck box bed, then press "RETRACTION" button, lip retract. The push "DOWN" button, then dock leveler restore to original stored position.

5. We will prepared two laminated bumper for all the dock levelers we supply.



6.Just give us the pit dimension,we can produce the dock leveler to suit for the pit.







All our standard dock leveler dimensions:

Model Specification(W*L*H)mm Pit Dimension(W*L*H)mm Adjust range Lip board(W*L*T)
6*6 1830*1830*490 1870*1680*500 +250mm/-200mm 1830*400*15
6.5*6 1980*1830*490 2020*1680*500 1980*400*15
7*6 2130*1830*490 2170*1680*500 2130*400*15
6*8 1830*2440*490(590) 1870*2280*500(600) +300mm/-300mm 1830*400*15
6.5*8 1980*2440*490(590) 2020*2280*500(600) 1980*400*15
7*8 2130*2440*490(590) 2170*2280*500(600) 2130*400*15
6*10 1830*3050*490(590) 1870*2880*500(600) +400mm/-300mm
If the height is 590mm:
+450mm/-350mm
1830*400*15
6.5*10 1980*3050*490(590) 2020*2880*500(600) 1980*400*15
7*10 2130*3050*490(590) 2170*2880*500(600) 2130*400*15

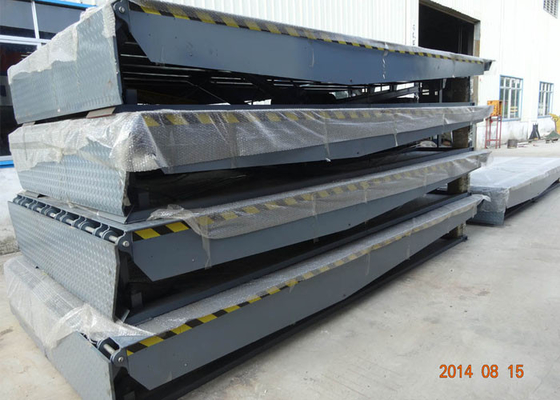

Delivery pictures:

These 6 unit docklevelers was export to UAE

4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier



4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier
