|Excavator Model:||Komatsu PC350||Max Open:||2200 Mm|
|Material:||Q345B + Hardox||Closed Height:||2520 Mm|
|Closed Volume:||1.2 M3||Weight:||2200kg|
|Color:||As Required||Warranty:||6 Months|
Hydraulic Excavator Grapple,
orange peel grapple

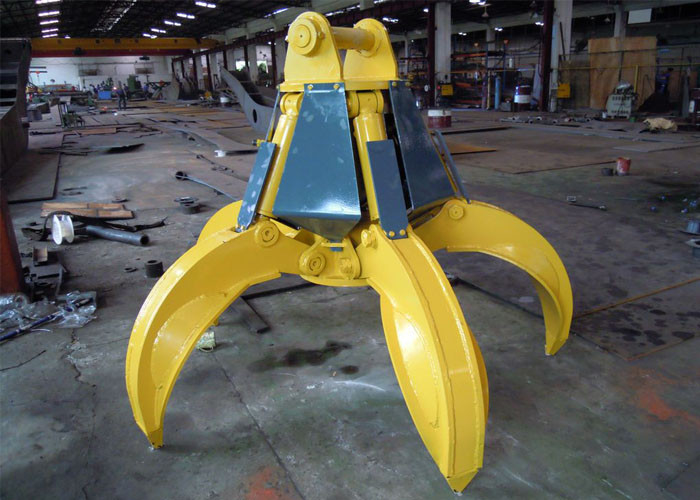

Komatsu PC350 Hydraulic Orange Peel Grab 4 Teeth Multi Peel Clamp
Hydraulic Orange peel grab is a common attachment for excavator.
Hydraulic orange peel scrap grab also called scrap grab,it’s a high efficient equipment to
handle steel scrap,iron,metal scrap,mineral,rubbish or other irregular massive material,
it’s very popular in recycling company.According to related excavator tonnage,usually
have 2~6pcs claws.
Scrap Grab made up from follow main parts:base,claws,cylinders and other parts.
Our Scrap Grab have follow advantages:
1. Base and main material of claws is Q345B,claw tine is Hardox400
2. It's easy for installation,it’s do not need extra pipe line,it can be connect to the pipe line of bucket cylinders.
3. Our grab have special design,all claws can open and closed at same time,do not out of
4. Main base have covers,each cylinder piston also have protection cover.
5. We will supply steel pipe for connection to bucket cylinder hose joint.
6. Claw is reinforced welding,higher performance for struture.
Suitable Excavator tonnage
|Closed Volume||1.2 m3|
|Self Height (Closed)||2520 mm|
|Claw No.||5 pcs|
|Max Open||2200 mm|
-loading & unloading scrap
