Product Details
Place of Origin: CHINA
Brand Name: Haide
Certification: CE/ISO
Model Number: ZM200
Payment & Shipping Terms
Minimum Order Quantity: 1Kit
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Film/Plywood Box
Delivery Time: Within 15 days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30Kit Per Month
Production Name: |
Wood Grapple |
Application: |
16~24ton Excavator |
Main Material: |
Q345B+Hardox |
Max Open: |
1600L/min |
Max Closed Area: |
0.87m2 |
Max Self Height: |
1890mm |
Min Closed Gap: |
360mm |
Self Weight: |
1100Kg |
Warranty: |
6 Month After Installation |
Production Name: |
Wood Grapple |
Application: |
16~24ton Excavator |
Main Material: |
Q345B+Hardox |
Max Open: |
1600L/min |
Max Closed Area: |
0.87m2 |
Max Self Height: |
1890mm |
Min Closed Gap: |
360mm |
Self Weight: |
1100Kg |
Warranty: |
6 Month After Installation |

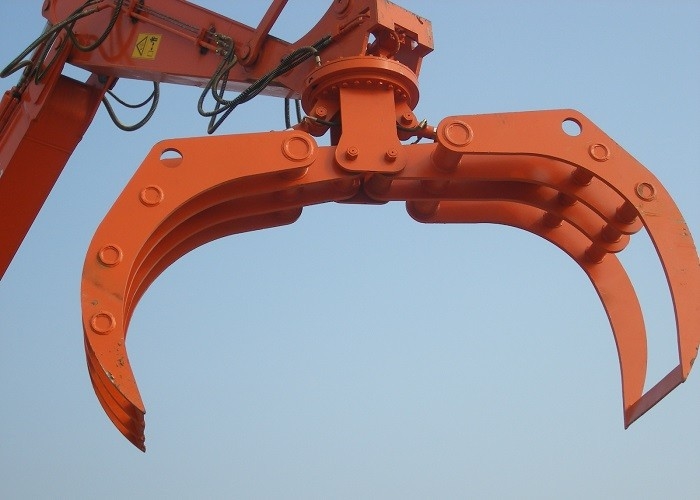

High Efficiency Rotating Excavator Bucket Tractor Grapple Attachment
1 , The log grab is capable 360 degree rotating to guarantee precise position. It's driven by double cylinder. It has a fortified structure and take short time in opening and closing.
2 , The wide opening width with light weight , not only outstanding performance in handing the iron bar but also maximize the operation efficiency with light weight.
3 , Unlimited clockwise and anti-clockwise 360 rotatable.
4 , Special designed swing bearing for durability and big cylinder for more power.
5 , Check valve is embedded for better safety shock value enclosed for better safety from damage.
6 , Wear resistant special solid steel is used and no extra reinforcement is requirement.
7 , Flexible choices dependent on job environment Operator can control the rotating speed. Versatile applications including handing of stones, wood, cane, pipes, disposable waste, landscaping works and many others.
|
Model |
Excavator tonnage(ton) |
Self weight(kg) |
Max open (L/min) |
Max closed area(m2) |
Max self height (mm) |
Min closed gap(mm) |
|
ZM70 |
6~9 |
340 |
1200 |
0.23 |
1290 |
190 |
|
ZM120 |
10~15 |
680 |
1300 |
0.43 |
1640 |
290 |
|
ZM200 |
16~24 |
1100 |
1600 |
0.87 |
1890 |
360 |
|
ZM300 |
25~30 |
1400 |
2300 |
1.2 |
2130 |
450 |
|
ZM400 |
31~36 |
1950 |
2800 |
1.83 |
2370 |
520 |
|
ZM500 |
37~45 |
2200 |
3200 |
2.51 |
2630 |
630 |
1 , Can be hydraulic type or mechanical type. Hydraulic type is fitted by two cylinder. Mechanical type is driven by the bucket cylinder .
2 , Cylinder's pistons are well protected by steel shroud preventing them from being damaged.
3 , The cutting edge can be teeth made of cast steel or a welded patch made of wear-resistant steel.
4 , Can be rotary type or non-rotary type. Rotary type is fitted with a integrated rotator which is capable of 360 ° rotating.
5 , Two extra pair of oil pipe ,valve and pedal switch has to be added to the excavator for rotary type.
6 , Mounting bracket can be 1-pin structure or 2-pin structure . 2-pin structure enable the grapple to tilt.
