Product Details
Place of Origin: CHINA
Brand Name: Haide
Certification: CE/ISO
Model Number: ZM300
Payment & Shipping Terms
Minimum Order Quantity: 1Kit
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Film/Plywood Box
Delivery Time: Within 15 days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30Kit Per Month
Production Name: |
Wood Grapple |
Application: |
25~30ton Excavator |
Main Material: |
Q345B+Hardox |
Max Open: |
2300L/min |
Max Closed Area: |
1.2m2 |
Max Self Height: |
2130mm |
Min Closed Gap: |
450mm |
Self Weight: |
1400Kg |
Warranty: |
6 Month After Installation |
Production Name: |
Wood Grapple |
Application: |
25~30ton Excavator |
Main Material: |
Q345B+Hardox |
Max Open: |
2300L/min |
Max Closed Area: |
1.2m2 |
Max Self Height: |
2130mm |
Min Closed Gap: |
450mm |
Self Weight: |
1400Kg |
Warranty: |
6 Month After Installation |

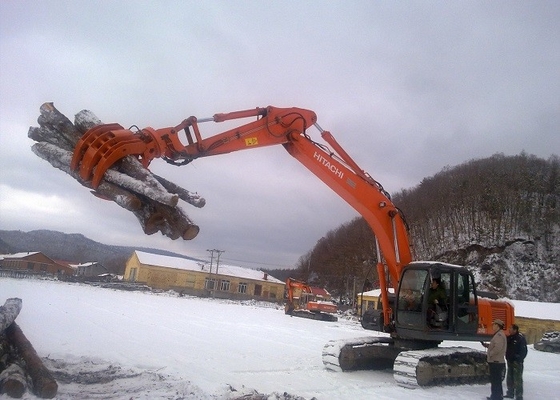

HItachi EX300 Wood Grapple Mechanical Type For Loading / Unloading
|
Model |
Excavator tonnage(ton) |
Self weight(kg) |
Max open (L/min) |
Max closed area(m2) |
Max self height (mm) |
Min closed gap(mm) |
|
ZM70 |
6~9 |
340 |
1200 |
0.23 |
1290 |
190 |
|
ZM120 |
10~15 |
680 |
1300 |
0.43 |
1640 |
290 |
|
ZM200 |
16~24 |
1100 |
1600 |
0.87 |
1890 |
360 |
|
ZM300 |
25~30 |
1400 |
2300 |
1.2 |
2130 |
450 |
|
ZM400 |
31~36 |
1950 |
2800 |
1.83 |
2370 |
520 |
|
ZM500 |
37~45 |
2200 |
3200 |
2.51 |
2630 |
630 |

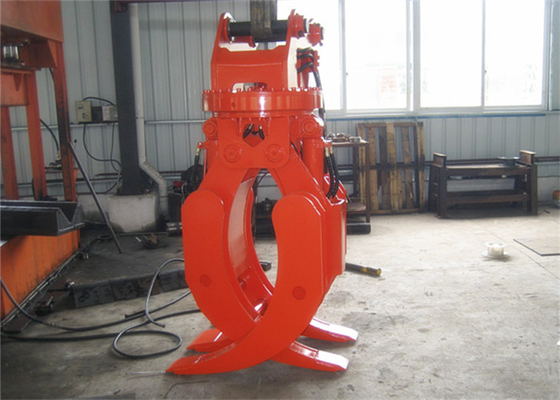

1. Can be hydraulic type or mechanical type. Hydraulic type is driven by two vertical cylinder(one cylinder plus one linkage design is also available for synchronizing).Mechanical type is driven by the bucket cylinder .
2. Cylinder's pistons are well protected by steel shroud preventing them from being damaged.
3. Oil hose are covered by plastic casing for protection .
4. The cutting edge can be teeth made of cast steel or a welded patch made of wear-resistant steel.

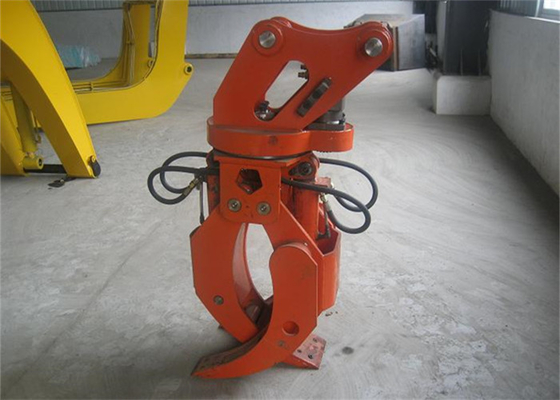

5. Can be rotary type or non-rotary type.Rotary type is fitted with a integrated rotator which is capable of 360 ° rotating.
6. Two extra pair of oil pipe and valve has to be added to the excavator for rotary type log grab.One extra pair of oil pipe and valve has to be added to the excavator for non-rotary hydraulic type log grab.
1. Manufacturer:As a many years experience manufacturer of attachements on excavator,we provide full support to our customers includes competitive price,after-sale servises,fast delivery and etc.
2. Lead time: we have a great deal of products and spare parts in stock. On leading time we have big advantages as a manufacuturer, usually in 10-15 days after order confirmation.
3. Package: the goods are packed in strong fumigated wooden cases. They could also packed according to customers' request.
