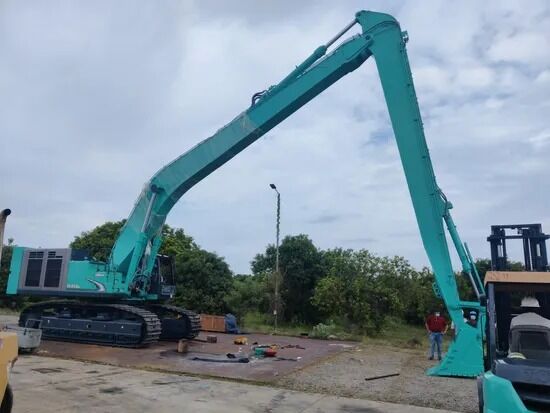

18m Long Reach Boom and Arm for PC220 Excavator

Product Details

Certification: CE, ISO9001: 2000, SGS

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            18m excavator long reach boom, PC220 excavator long arm, excavator long arm with warranty


Model NO.:	HD-LDB200-2	Type:	Crawler Excavator
Bucket Capacity:	0.1~0.5m³	Material:	Q345b (Sgc490)
Boom Length:	10000mm	Arm Length:	8000mm
Max Dig Depth:	12200mm	Max Extensive Scope:	17600mm
Max Dig Height:	13500mm	Folding Height:	3040mm
Suit Excavator Tonnage:	20ton	Extra Counter Weight:	2000kg
Bucket Volume:	0.4 M3	Pin Material:	42CrMo4
Welding Gas:	80% Argon, 20% CO2

Model NO.:	HD-LDB200-2
Type:	Crawler Excavator
Bucket Capacity:	0.1~0.5m³
Material:	Q345b (Sgc490)
Boom Length:	10000mm
Arm Length:	8000mm
Max Dig Depth:	12200mm
Max Extensive Scope:	17600mm
Max Dig Height:	13500mm
Folding Height:	3040mm
Suit Excavator Tonnage:	20ton
Extra Counter Weight:	2000kg
Bucket Volume:	0.4 M3
Pin Material:	42CrMo4
Welding Gas:	80% Argon, 20% CO2

Description

18m Long Reach Boom and Arm for PC220 Excavator

Product Description

Designed for dredging, port construction, railway construction and groundwork construction with extensive operation scope, high efficiency and enhanced safety.
Custom-designed long reach booms available for all excavator brands with detailed dimensions for PC220 models.
Complete package includes lubricant pipe system, hydraulic system, bucket, bucket cylinder, linkage, pins, and hoses.
Option to use original stick cylinder or include new stick cylinder (included with this PC220 model).
Constructed with Q345B + Q690D steel (Weldox optional) with 42CrMo4 pins for superior durability.
Precision 45-degree beveled plates before welding for optimal joint strength.
Customizable additional pipelines available upon request.
Manual welding with 80% Argon and 20% CO2 protective gas mixture for premium weld quality.
Boring machine precision adjustment for all base joints and main structures to minimize welding stress tolerance.
Includes comprehensive parts list for easy maintenance and after-sales service.
Detailed dimension drawings provided for pre-order confirmation.
Includes anti-explode valve for stick cylinder (JCB220 model).

Technical Specifications

Specification	Value
Boom length	1000 mm
Arm length	8000 mm
Max dig depth	12200 mm
Max extensive scope	17600 mm
Max dig height	13500 mm
Folding height	3040 mm
Bucket volume	0.4 m³
Counter weight	Not required
