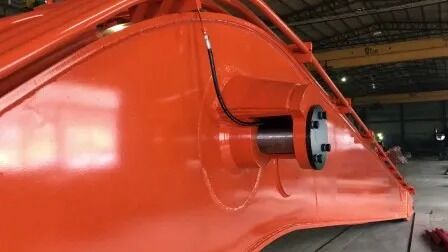

20m Length Long Reach Boom and Arm for Hitachi Zx360 Excavator

Product Details

Certification: CE, ISO9001: 2000, SGS

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 19800

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Hitachi ZX360 excavator long boom, 20m excavator long reach arm, excavator extension arm with warranty


Boom Length:	11000mm	Arm Length:	9000mm
Total Length:	20000mm	Max Dig Depth:	14500mm
Max Extensive Scope:	19600mm	Max Dig Height:	14920mm
Folding Height:	3210mm	Bucket Capacity:	0.5m3
Excavator Tonnage:	35ton	Material:	Q345B (SGC490)
Weight:	6000kg	Transmission Type:	Hydraulic
Drive Type:	Internal Combustion	Bucket Type:	Backhoe
Model Number:	ZX360

Boom Length:	11000mm
Arm Length:	9000mm
Total Length:	20000mm
Max Dig Depth:	14500mm
Max Extensive Scope:	19600mm
Max Dig Height:	14920mm
Folding Height:	3210mm
Bucket Capacity:	0.5m3
Excavator Tonnage:	35ton
Material:	Q345B (SGC490)
Weight:	6000kg
Transmission Type:	Hydraulic
Drive Type:	Internal Combustion
Bucket Type:	Backhoe
Model Number:	ZX360

Description

20m Length Long Reach Boom and Arm for Hitachi Zx360 Excavator

20m Length Long Reach Boom and Arm for Hitachi ZX360 Excavator

Product Specifications

Model: HD-LDB350-1
Material: Q345B (SGC490)
Total Length: 20000mm (Boom: 11000mm, Arm: 9000mm)
Maximum Dig Depth: 14500mm
Maximum Extensive Scope: 19600mm
Maximum Dig Height: 14920mm
Folding Height: 3210mm
Bucket Capacity: 0.5m³
Compatible Excavator Weight: 35Ton
Warranty: 6 months
Color: Customizable
Certification: CE available

Included Components

Hydraulic pipe and Lubricant pipe System
1 × Bucket (0.5m³)
1 × Counter weight (3ton)
1 × Bucket cylinder
1 × Connect rod
4 × High-pressure hoses
6 × Pins
Several shims
Installation tools

Optional components available upon request: new arm cylinder and additional counter weight.

Product Features

Maintains original excavator performance
Constructed from high-strength steel plate
Significantly improves operational scope
Compatible with various excavator makes and models
Multiple material options available (Q345B, Q690D, Weldox)
Custom configurations available to meet specific requirements

Model Comparison

Model	LDB120	LDB200-1	LDB200-2	LDB300	LDB350-1	LDB350-2	LDB450
Boom Length (mm)	7100	8220	10000	10000	11000	12000	13000
Arm Length (mm)	5900	7160	8000	8000	9000	10000	11000
Weight (kg)	3000	4000	4200	5200	6000	6500	7000
Max Dig Depth (mm)	9000	11340	12200	12200	14500	16100	18000
Max Extensive Scope (mm)	12500	15100	17600	17600	19600	21600	23600
Max Dig Height (mm)	11300	12510	13500	13720	14920	16100	17300
Folding Height (mm)	2900	2980	3040	3210	3210	3400	3400
Bucket Capacity (m³)	0.3	0.5	0.4	0.4	0.5	0.6	0.6
Suit Excavator Tonnage (ton)	12	20	20	30	35	35	45
