Manufacturer of Hitachi Zx200/Ex200 Excavator Long Reach Boom

Product Details

Certification: CE, ISO9001: 2000, SGS

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Hitachi ZX200 excavator long reach boom, Hitachi EX200 excavator long arm, excavator long reach boom with warranty


Model NO.:	HITACHI ZX200/EX200	Drive Type:	Internal Combustion Drive
Bucket Capacity:	0.5m3	Material:	Q345b (Sgc490)
Boom Length:	8220mm	Arm Length:	7160mm
Max Dig Depth:	11340mm	Max Extensive Scope:	15100mm
Max Dig Height:	12510mm	Folding Height:	2980mm
Excavator Tonnage:	20ton	Production Capacity:	1000set/Year
Total Length:	15380mm	Weight:	4000kg
Bucket Volume:	0.4m3

Model NO.:	HITACHI ZX200/EX200
Drive Type:	Internal Combustion Drive
Bucket Capacity:	0.5m3
Material:	Q345b (Sgc490)
Boom Length:	8220mm
Arm Length:	7160mm
Max Dig Depth:	11340mm
Max Extensive Scope:	15100mm
Max Dig Height:	12510mm
Folding Height:	2980mm
Excavator Tonnage:	20ton
Production Capacity:	1000set/Year
Total Length:	15380mm
Weight:	4000kg
Bucket Volume:	0.4m3

Description

Manufacturer of Hitachi Zx200/Ex200 Excavator Long Reach Boom

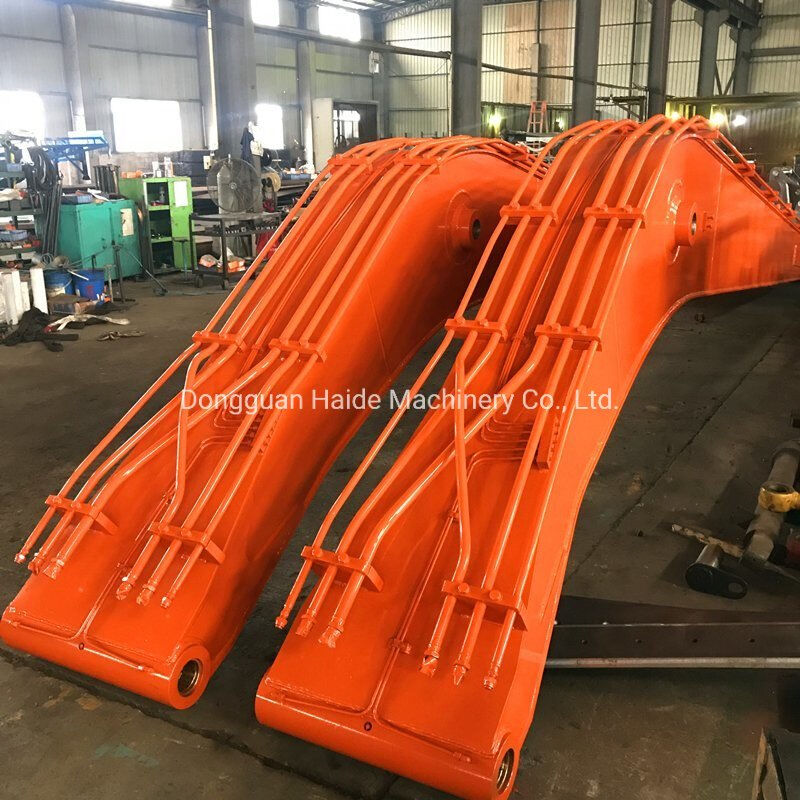

Hitachi ZX200/EX200 Excavator Long Reach Boom

High-performance excavator long reach boom and arm system designed for extended reach applications.

Specifications and Standard Supply

Long boom: One unit

Long arm: One unit

Bucket cylinder: One unit

Standard bucket: One unit

Pins: 8 units

"H" linkage: One set

High pressure hoses: 4 units

Steel tube: 4 units

Boom cylinder: Use original cylinders

Arm cylinder: Use original cylinder

Working Dimensions

Model	LDB120	LDB200	LDB220	LDB200	LDB300	LDB350	LDB400	LDB450
Total length (mm)	13000	15380	15380	18000	18000	20000	22000	24000
Weight (kg)	3000	4000	4200	4900	5200	6000	6500	7000
Max dig depth (mm)	9000	11340	11370	13000	13000	15000	16500	18000
Max extensive scope (mm)	12500	15100	15100	17500	17600	19600	21600	23600
Max dig height (mm)	11300	12510	12610	13720	13720	14920	16100	17300
Folding height (mm)	2900	2980	3040	3210	3210	3210	3400	3400
Bucket volume (m3)	0.3	0.4	0.4	0.4	0.4	0.5	0.6	0.6
Excavator tonnage (ton)	10-16	20-22	22-25	20-25	30	35	40	45

Key Features

Material:

Standard long reach boom: All Q345B Steel (equivalent to S355 steel in Europe)
Heavy duty long reach (excavator tonnage above 40ton): Top and bottom use Q690D steel (equivalent to S690QL steel in Europe), other parts use Q340B steel
