Ce-Approved Long Reach Boom and Arm for Hitachi Zx200 Excavator

Product Details

Certification: CE, ISO9001: 2000, SGS

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            CE-approved excavator long reach boom, Hitachi ZX200 excavator long arm, excavator boom and arm replacement


Model NO.:	HD-LDB200-1	Transmission Type:	Hydraulic Transmission
Drive Type:	Internal Combustion Drive	Bucket Capacity:	0.5m3
Material:	Q345b (Sgc490)	Boom Length:	8220mm
Arm Length:	7160mm	Max Dig Depth:	11340mm
Max Extensive Scope:	15100mm	Max Dig Height:	12510mm
Folding Height:	2980mm	Excavator Tonnage:	20ton
Total Length:	15380mm	Weight:	4000kg
Production Capacity:	1000set/Year

Model NO.:	HD-LDB200-1
Transmission Type:	Hydraulic Transmission
Drive Type:	Internal Combustion Drive
Bucket Capacity:	0.5m3
Material:	Q345b (Sgc490)
Boom Length:	8220mm
Arm Length:	7160mm
Max Dig Depth:	11340mm
Max Extensive Scope:	15100mm
Max Dig Height:	12510mm
Folding Height:	2980mm
Excavator Tonnage:	20ton
Total Length:	15380mm
Weight:	4000kg
Production Capacity:	1000set/Year

Description

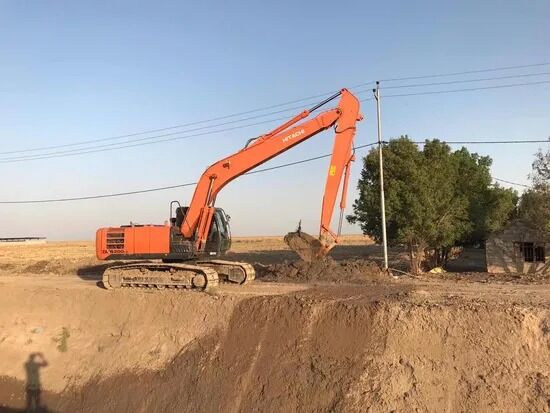

Ce-Approved Long Reach Boom and Arm for Hitachi Zx200 Excavator

CE-Approved Long Reach Boom and Arm for Hitachi ZX200 Excavator

High-quality long reach boom and arm system designed for Hitachi ZX200 excavators, CE-certified for safety and performance.

Key Specifications

Material: Q345B (SGC490)
Total length: 15380mm (boom length: 8220mm, arm length: 7160mm)
Max dig depth: 11340mm
Max extensive scope: 15100mm
Max dig height: 12510mm
Folding height: 2980mm
Bucket capacity: 0.5m³
Suitable for: 20-ton excavators
Warranty: 6 months
Color: Optional
CE certification available

Included Components

Hydraulic pipe and lubricant pipe system
1 × Bucket (0.5m³)
1 × Bucket cylinder
1 × Connect rod
4 × High-pressure hoses
6 × Pins
Several shims
Installation tools

Optional components available upon request: new arm cylinder and counter weight.

Custom long boom configurations available to meet your specific requirements.

Product Features

Maintains original excavator performance
Constructed from high-strength steel plate
Significantly improves operation scope
Compatible with all makes and models of excavators
Multiple material options available (Q345B, Q690D, Weldox)

Model Specifications

Model	LDB120	LDB200-1	LDB200-2	LDB300	LDB350-1	LDB350-2	LDB450
Boom length (mm)	7100	8220	10000	10000	11000	12000	13000
Arm length (mm)	5900	7160	8000	8000	9000	10000	11000
Weight (kg)	3000	4000	4200	5200	6000	6500	7000
Max dig depth (mm)	9000	11340	12200	12200	14500	16100	18000
Max extensive scope (mm)	12500	15100	17600	17600	19600	21600	23600
Max dig height (mm)	11300	12510	13500	13720	14920	16100	17300
Folding height (mm)	2900	2980	3040	3210	3210	3400	3400
Bucket capacity (m³)	0.3	0.5	0.4	0.4	0.5	0.6	0.6
Suit Excavator tonnage (ton)	12	20	20	30	35	35	45
