Top Quality Long Reach Boom and Arm for Volvo Excavator

Product Details

Certification: CE, ISO9001: 2000

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Volvo excavator long reach boom, excavator long arm attachment, Volvo excavator arm with warranty


Model NO.:	HD-LDB200	Bucket Type:	Backhoe
Transmission Type:	Hydraulic Transmission	Drive Type:	Internal Combustion Drive
Bucket Capacity:	0.5~1.0m³	Material:	Q690d (Stregnth:690MPa =Weldox700)
Boom Length:	12000mm	Arm Length:	10000mm
Max Dig Depth:	1580mm	Max Extensive Scope:	21500mm
Max Dig Height:	12510mm	Folding Height:	2980mm
Excavator Tonnage:	45ton	Extra Counter Weight:	3ton
Production Capacity:	100set/Year

Model NO.:	HD-LDB200
Bucket Type:	Backhoe
Transmission Type:	Hydraulic Transmission
Drive Type:	Internal Combustion Drive
Bucket Capacity:	0.5~1.0m³
Material:	Q690d (Stregnth:690MPa =Weldox700)
Boom Length:	12000mm
Arm Length:	10000mm
Max Dig Depth:	1580mm
Max Extensive Scope:	21500mm
Max Dig Height:	12510mm
Folding Height:	2980mm
Excavator Tonnage:	45ton
Extra Counter Weight:	3ton
Production Capacity:	100set/Year

Description

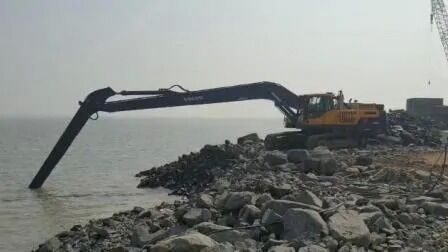

Top Quality Long Reach Boom and Arm for Volvo Excavator

Product Description

Includes the following components: Hydraulic pipe and lubricant pipe system, 1×Bucket (0.5m³), 1×Bucket cylinder, 1×Connect rod, 4×High-pressure hoses, 6×Pins, several shims, and installation tools.

Key Features

Customizable to match your excavator model specifications
Comprehensive dimension database for all excavator types
Optional arm cylinder and counter weight available upon request
Custom long boom configurations to meet specific requirements
Maintains original excavator performance with high-strength steel plate construction
Compatible with all makes and models of excavators
Multiple material options available (Q345B, Q690D, Weldox) to suit application needs
Factory visits welcome - we would be honored to serve you

Technical Specifications

MODEL	LDB120	LDB200-1	LDB200-2	LDB300	LDB350-1	LDB350-2	LDB450
Boom length (mm)	7100	8220	10000	10000	11000	12000	13000
Arm length (mm)	5900	7160	8000	8000	9000	10000	11000
Weight (kg)	3000	4000	4200	5200	6000	6500	7000
Max dig depth (mm)	9000	11340	12200	12200	14500	16100	18000
Max extensive scope (mm)	12500	15100	17600	17600	19600	21600	23600
Max dig height (mm)	11300	12510	13500	13720	14920	16100	17300
Folding height (mm)	2900	2980	3040	3210	3210	3400	3400
Bucket capacity (m³)	0.3	0.5	0.4	0.4	0.5	0.6	0.6
Suit Excavator tonnage (ton)	12	20	20	30	35	35	45
