CE Certified Excavator Long Reach Boom for 10-350 Ton Machines

Name: CE Certified Excavator Long Reach Boom for 10-350 Ton Machines
Brand: Dongguan Haide Machinery Co., Ltd
SKU: HD-LDB
Price: 20,000.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Haide

Model Number: HD-LDB

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            CE certified excavator long reach boom, excavator long arm for 10-350 ton machines, long reach boom with CE certification


Maximum Length:	34m	Applicable Tonnage:	10ton To 350ton
Surface Finish:	Sand-blasted And Painted	Total Length:	13000mm To 24000mm
Weight:	3000kg To 7000kg	Max Dig Depth:	9000mm To 18000mm
Max ExtensiveScope:	12500mm To 23600mm	Max Dig Height:	11300mm To 17300mm
Folding Height:	2900mm To 3400mm	Bucket Volume:	0.3m3 To 0.6m3
Excavator Tonnage:	12ton To 45ton	Material Options:	Q345B, Q690D, Weldox
Accessory Included:	Bucket, Linkage, Bucket Cylinder, Oil Pipe/hose, Lubricating System	Production Leadtime:	15 Days For 1 Set, 20 Days For 3 Sets
Seam Preparation:	45 Degree Tapered Before Welding

Maximum Length:	34m
Applicable Tonnage:	10ton To 350ton
Surface Finish:	Sand-blasted And Painted
Total Length:	13000mm To 24000mm
Weight:	3000kg To 7000kg
Max Dig Depth:	9000mm To 18000mm
Max ExtensiveScope:	12500mm To 23600mm
Max Dig Height:	11300mm To 17300mm
Folding Height:	2900mm To 3400mm
Bucket Volume:	0.3m3 To 0.6m3
Excavator Tonnage:	12ton To 45ton
Material Options:	Q345B, Q690D, Weldox
Accessory Included:	Bucket, Linkage, Bucket Cylinder, Oil Pipe/hose, Lubricating System
Production Leadtime:	15 Days For 1 Set, 20 Days For 3 Sets
Seam Preparation:	45 Degree Tapered Before Welding

Description

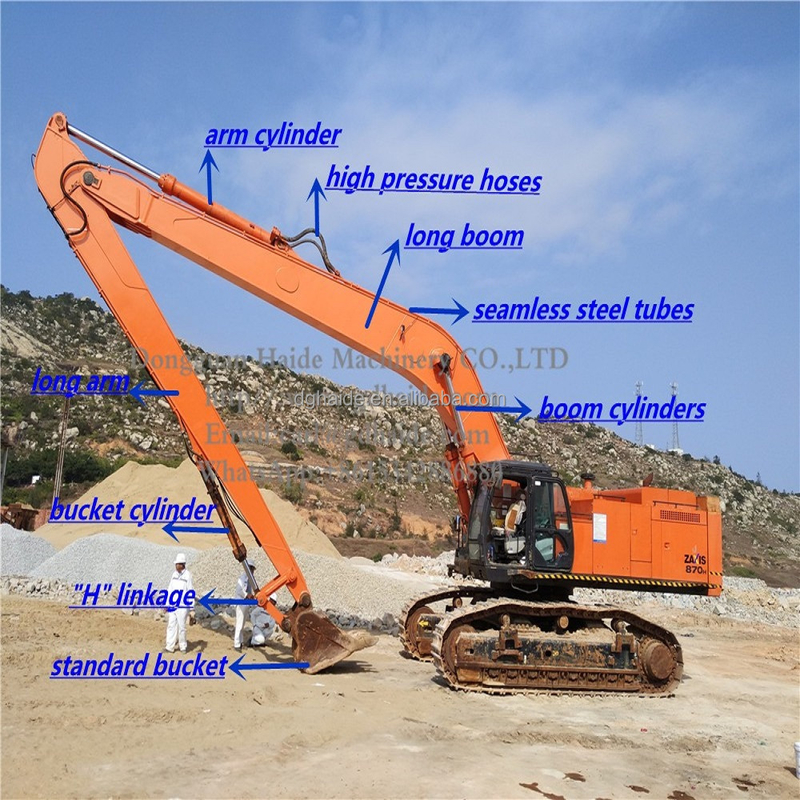

CE Certified Excavator Long Reach Boom for 10-350 Ton Machines

CE-approved Hitachi, Volvo, Hyundai, Doosan, Kobelco Excavator Long Reach Boom

Product Specifications

Attribute	Value
Purpose	Long reach application for excavator
Excavator model	All make and model
Colour	Optional
Certificate	CE and ISO certificate
Accessory included	bucket, linkage, bucket cylinder, oil pipe/hose, lubricating system
Maximum length	34m
Surface finish	Sand-blasted and painted
Applicable excavator tonnage	From 10ton to 350ton
OEM service	Available
Warranty	6 months

Product Features

Compatible with all makes and models of excavators
Standard package includes: bucket, linkage, bucket cylinder, 4 oil pipes/hoses, 6 pins, and lubricating system
Multiple material options available (Q345B, Q690D, Weldox) to suit specific applications
Large booms can be divided into two sections for container shipping to reduce costs
All seams are 45 degree tapered before welding for superior strength
6-month warranty included
Reinforced construction options available for heavy-duty applications
Boom cylinder and arm cylinder available upon request
Additional pipeline can be added for specialized applications
Global references available in Australia, Europe, India, Bangladesh, Canada, South Africa, Southeast Asia, and South America

Certification & Documentation

CE and ISO certified
Product brochure available in PDF format

Packaging & Shipping

Initial protective film wrapping with steel wire securing to container walls
Three complete sets can be loaded per container (using racks for upper sets)
Production lead time: 15 days for 1 set, 20 days for 3 sets

Common Models

Model	LDB120	LDB200	LDB220	LDB300	LDB350	LDB400	LDB450
Total length(mm)	13000	15380	15380	18000	20000	22000	24000
Weight(kg)	3000	4000	4200	5200	6000	6500	7000
Max dig depth(mm)	9000	11340	11370	13000	15000	16500	18000
Max extensiveScope (mm)	12500	15100	15100	17600	19600	21600	23600
Max dig height(mm)	11300	12510	12610	13720	14920	16100	17300
Folding height(mm)	2900	2980	3040	3210	3210	3400	3400
Bucket volume(m3)	0.3	0.4	0.4	0.4	0.5	0.6	0.6
Excavator Tonnage(ton)	12	20	22	30	35	40	45
