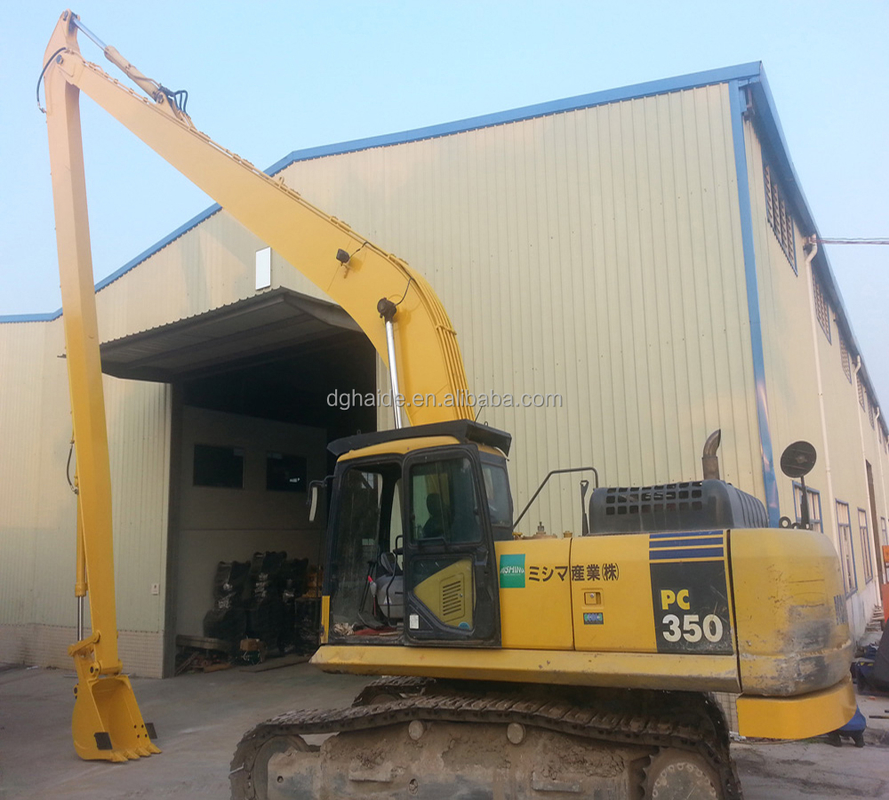

CE Certified Excavator Long Reach Boom Arm up to 34m

Name: CE Certified Excavator Long Reach Boom Arm up to 34m
Brand: Dongguan Haide Machinery Co., Ltd
SKU: PC200/PC210/PC240/PC300/PC350/PC360/PC400/PC450/PC600/PC650/PC800
Price: 20,000.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Haide

Model Number: PC200/PC210/PC240/PC300/PC350/PC360/PC400/PC450/PC600/PC650/PC800

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            CE certified excavator long reach boom, excavator long arm up to 34m, long reach excavator boom with warranty


Maximum Length:	34m	Applicable Tonnage:	10ton To 350ton
Surface Finish:	Sand-blasted And Painted	Material Options:	Q345B, Q690D, Weldox
Total Length:	13000mm To 24000mm	Weight:	3000kg To 7000kg
Max Dig Depth:	9000mm To 18000mm	Max ExtensiveScope:	12500mm To 23600mm
Max Dig Height:	11300mm To 17300mm	Folding Height:	2900mm To 3400mm
Bucket Volume:	0.3m3 To 0.6m3	Excavator Tonnage:	12ton To 45ton
Accessory Included:	Bucket, Linkage, Bucket Cylinder, Oil Pipe/hose, Lubricating System	Production Leadtime:	15 Days For 1 Set, 20 Days For 3 Sets
Container Capacity:	3 Complete Sets

Maximum Length:	34m
Applicable Tonnage:	10ton To 350ton
Surface Finish:	Sand-blasted And Painted
Material Options:	Q345B, Q690D, Weldox
Total Length:	13000mm To 24000mm
Weight:	3000kg To 7000kg
Max Dig Depth:	9000mm To 18000mm
Max ExtensiveScope:	12500mm To 23600mm
Max Dig Height:	11300mm To 17300mm
Folding Height:	2900mm To 3400mm
Bucket Volume:	0.3m3 To 0.6m3
Excavator Tonnage:	12ton To 45ton
Accessory Included:	Bucket, Linkage, Bucket Cylinder, Oil Pipe/hose, Lubricating System
Production Leadtime:	15 Days For 1 Set, 20 Days For 3 Sets
Container Capacity:	3 Complete Sets

Description

CE Certified Excavator Long Reach Boom Arm up to 34m

CE-approved PC Long Reach Boom and Arm

Product Specifications

Attribute	Value
Purpose	Long reach application for excavator
Excavator model	Any make and model of excavator
Colour	Optional
Certificate	CE and ISO certificate
Accessory included	bucket, linkage, bucket cylinder, oil pipe/hose, lubricating system
Maximum length	34m
Surface finish	Sand-blasted and painted
Applicable excavator tonnage	From 10ton to 350ton
OEM service	Available
Warranty	6 months

Product Features

Compatible with all makes and models of excavators
Standard supply includes: bucket, linkage, bucket cylinder, 4 oil pipes/hoses, 6 pins, and lubricating system
Multiple material options available (Q345B, Q690D, Weldox) to suit specific applications
Large boom can be split into two sections for container transport
All steel plate edges are tapered by bevelling machine before welding for enhanced strength
One year warranty included
Reinforced construction available for heavy-duty applications like mining operations
Compliant with Europe Machinery Directive 2006/42/EC Article 12 with CE certification
Additional pipeline can be installed for extra attachments (breaker, hammer, quick coupler, etc.)
Established references in Australia, Europe, India, Bangladesh, Canada, South-east Asia, and South America

Certification & Documentation

CE and ISO certificates provided
Detailed product brochure available in PDF format

Packaging & Shipping

Initial protective film wrapping with steel wire securing inside containers
Three complete sets can be loaded per container using racks for upper sets
Production lead time: 15 days for 1 set, 20 days for 3 sets

Standard Models

Model	LDB120	LDB200	LDB220	LDB300	LDB350	LDB400	LDB450
Total length(mm)	13000	15380	15380	18000	20000	22000	24000
Weight(kg)	3000	4000	4200	5200	6000	6500	7000
Max dig depth(mm)	9000	11340	11370	13000	15000	16500	18000
Max extensiveScope (mm)	12500	15100	15100	17600	19600	21600	23600
Max dig height(mm)	11300	12510	12610	13720	14920	16100	17300
Folding height(mm)	2900	2980	3040	3210	3210	3400	3400
Bucket volume(m3)	0.3	0.4	0.4	0.4	0.5	0.6	0.6
Excavator Tonnage(ton)	12	20	22	30	35	40	45
