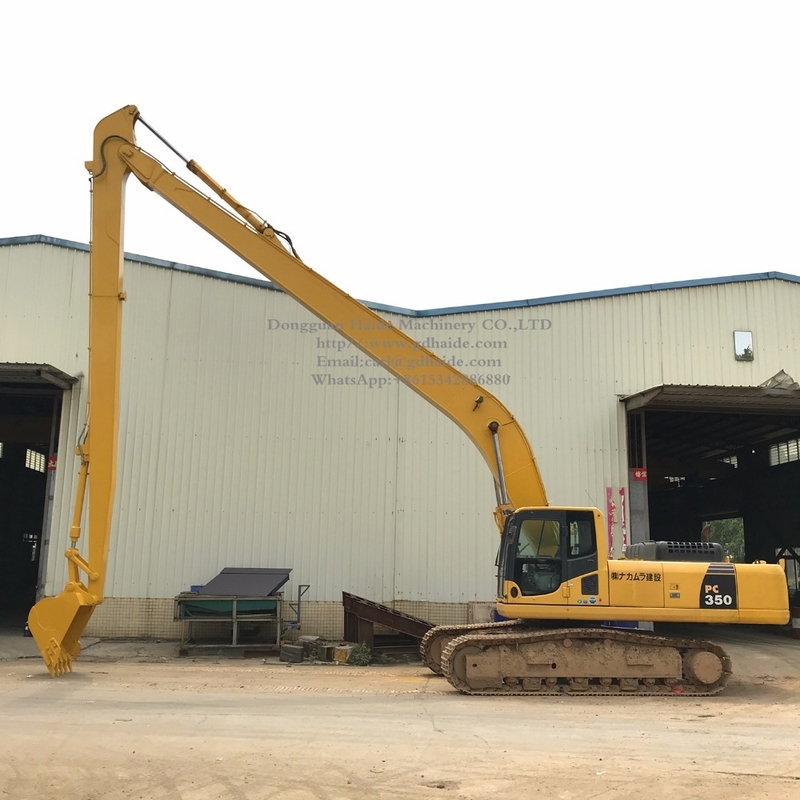

PC350 22m Long Reach Excavator Boom Arm Q345B Q690D

Name: PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
Brand: Dongguan Haide Machinery Co., Ltd
SKU: PC350 LONG REACH BOOM
Price: 20,000.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: PC350 22meters long reach boom and arm for sale

Certification: ISO9001:2008 and CE

Model Number: PC350 LONG REACH BOOM

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            22m long reach excavator boom arm, PC350 excavator long arm Q345B, excavator boom arm Q690D steel


Material:	Q345B&Q690D	Boom Length:	12000mm
Arm Length:	10000mm	Bucket Volume:	0.6m3
Max Digging Depth:	16500mm	Surface Finish:	Sand-blasted And Painted
Total Length:	22000mm	Weight:	6500kg
Max ExtensiveScope:	21600mm	Max Dig Height:	16100mm
Folding Height:	3400mm	Excavator Tonnage:	45 Ton
Welding Gas Mix:	80% Argon, 20% CO2	Bushing Material:	Copper With Graphite
Edge Preparation:	Milling Machines

Material:	Q345B&Q690D
Boom Length:	12000mm
Arm Length:	10000mm
Bucket Volume:	0.6m3
Max Digging Depth:	16500mm
Surface Finish:	Sand-blasted And Painted
Total Length:	22000mm
Weight:	6500kg
Max ExtensiveScope:	21600mm
Max Dig Height:	16100mm
Folding Height:	3400mm
Excavator Tonnage:	45 Ton
Welding Gas Mix:	80% Argon, 20% CO2
Bushing Material:	Copper With Graphite
Edge Preparation:	Milling Machines

Description

PC350 22m Long Reach Excavator Boom Arm Q345B Q690D

CE-Approved Long Excavator Boom Arm for PC350

Product Specifications

Attribute	Value
Material	Q345B & Q690D
Application	Used excavator
Surface finish	Sand-blasted and painted
Warranty	12 months after installation
Length of long boom	12000mm
Length of long arm	10000mm
Bucket	0.6m³
Max digging depth	16500mm

Product Features

Compatible with all makes and models of excavators
Standard package includes bucket, linkage, bucket cylinder, 4 oil pipes/hoses, 6 pins, and lubricating system
Multiple material options available (Q345B, Q690D, Weldox) to suit specific applications
Two-piece boom design for container-friendly shipping
45-degree tapered seams for optimal welding quality
12-month warranty coverage
Reinforced construction options for heavy-duty applications
Optional boom and arm cylinders available
Custom pipeline configurations for specialized applications
Capable of producing booms up to 32m in length

Model Specifications

Model	LDB120	LDB200	LDB220	LDB300	LDB350	LDB400	LDB450
Total length(mm)	13000	15380	15380	18000	20000	22000	24000
Weight(kg)	3000	4000	4200	5200	6000	6500	7000
Max dig depth(mm)	9000	11340	11370	13000	15000	16500	18000
Max extensiveScope (mm)	12500	15100	15100	17600	19600	21600	23600
Max dig height(mm)	11300	12510	12610	13720	14920	16100	17300
Folding height(mm)	2900	2980	3040	3210	3210	3400	3400
Bucket volume(m³)	0.3	0.4	0.4	0.4	0.5	0.6	0.6
Excavator Tonnage(ton)	12	20	22	30	35	40	45
