Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D

Name: Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
Brand: Dongguan Haide Machinery Co., Ltd
SKU: SY235/SY265/SY335/SY485
Price: 20,000.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Pile driving machine

Certification: ISO9001:2008 and CE

Model Number: SY235/SY265/SY335/SY485

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Excavator pile driving boom 8.6m, Excavator long arm Q345B, Excavator arm Q690D with warranty


Material:	Q345B&Q690D	Surface Finish:	Sand-blasted And Painted
Boom Length:	8.6meters	Arm Length:	6.9meters
Total Length:	13000-24000mm	Weight:	3000-7000kg
Max Dig Depth:	9000-18000mm	Max ExtensiveScope:	12500-23600mm
Max Dig Height:	11300-17300mm	Folding Height:	2900-3400mm
Bucket Volume:	0.3-0.6m3	Excavator Tonnage:	12-45ton
Welding Gas:	80% Argon, 20% CO2	Bushing Material:	Copper With Graphite
Seam Preparation:	45 Degree Tapered

Material:	Q345B&Q690D
Surface Finish:	Sand-blasted And Painted
Boom Length:	8.6meters
Arm Length:	6.9meters
Total Length:	13000-24000mm
Weight:	3000-7000kg
Max Dig Depth:	9000-18000mm
Max ExtensiveScope:	12500-23600mm
Max Dig Height:	11300-17300mm
Folding Height:	2900-3400mm
Bucket Volume:	0.3-0.6m3
Excavator Tonnage:	12-45ton
Welding Gas:	80% Argon, 20% CO2
Bushing Material:	Copper With Graphite
Seam Preparation:	45 Degree Tapered

Description

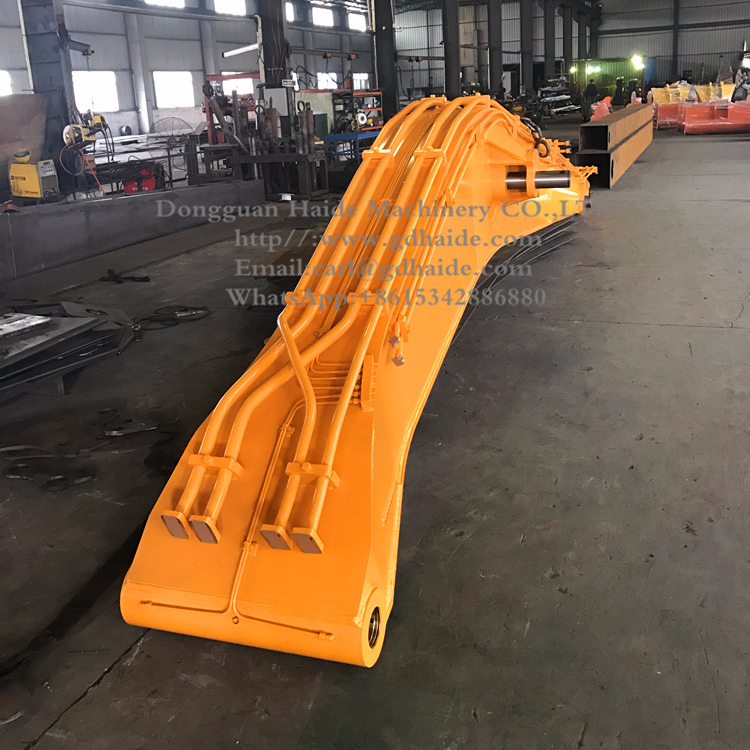

Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D

Excavator Long Boom and Arm for Pile Driving/Driver

Product Specifications

Material	Q345B & Q690D
Application	Used excavator
Surface Finish	Sand-blasted and painted
Warranty	6 months
Length of Long Boom	8.6 meters
Length of Long Arm	6.9 meters

Product Description

SANY excavator pile driving boom and arm is designed for extended reach and heavy-duty pile driving applications.

Compatible with all makes and models of excavators
Standard supply includes: bucket, linkage, bucket cylinder, 4 oil pipes/hoses, 6 pins, and lubricating system
Multiple material options available (Q345B, Q690D, Weldox) to suit specific applications
Two-piece boom design for easier container shipping
45-degree tapered seams for superior welding quality
Optional boom cylinder and arm cylinder available
Customizable with additional pipelines for specialized applications
Capable of producing booms up to 32m in length

Model Specifications

Model	LDB120	LDB200	LDB220	LDB300	LDB350	LDB400	LDB450
Total length (mm)	13000	15380	15380	18000	20000	22000	24000
Weight (kg)	3000	4000	4200	5200	6000	6500	7000
Max dig depth (mm)	9000	11340	11370	13000	15000	16500	18000
Max extensiveScope (mm)	12500	15100	15100	17600	19600	21600	23600
Max dig height (mm)	11300	12510	12610	13720	14920	16100	17300
Folding height (mm)	2900	2980	3040	3210	3210	3400	3400
Bucket volume (m³)	0.3	0.4	0.4	0.4	0.5	0.6	0.6
Excavator Tonnage (ton)	12	20	22	30	35	40	45
