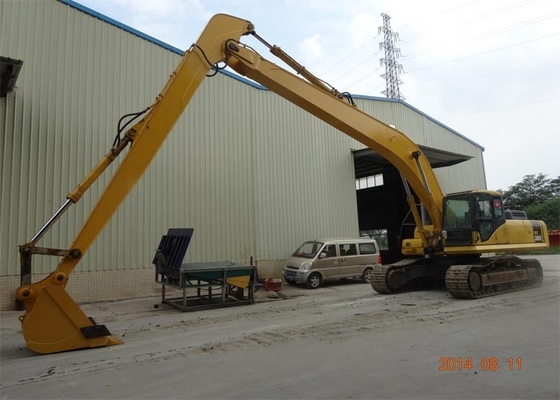

Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight

Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight

Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight
Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight

Large Image :  Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight Get Best Price

Product Details:
Place of Origin: China
Brand Name: Haide
Certification: CE/ISO
Model Number: LDB350-PC360-22meters
Payment & Shipping Terms:
Minimum Order Quantity: 1kit
Price: Negotiation(EXW,FOB or CIF price)
Packaging Details: Film
Delivery Time: Within 15 days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 30 kits per month
Detailed Product Description
Product Name: Long Reach Boom Excavator Model: PC360
Total Length: 22 M Bucket: 0.5 Cum
Counter Weight: 4 Ton Material: Q345B + Q690D
Stick Cylinder: Use Original Warranty: 6 Months After Installation
High Light:

long reach boom

,

cat 345 long reach

,

22 Meters Excavator Long Reach Boom



Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight



Specifications:



Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight 0

Boom length

12000 mm

Arm length

10000 mm

Max extensive scope(A)

21600 mm

Max dig depth(B)

14500 mm

Max dig height(D)

14920 mm

Max dig depth in vertical wall(C)

14688 mm

Max unloading height(E)

12920 mm

Min rotate radius(F)

5000 mm

Bucket volume

0.5m3

Counter weight

4 ton

Folding height

3400mm





Certificate and Documents:



1.CE and ISO certificate are available.

2.Brochure in PDF format is available.





Packing and shipping:



1.We pack it by film at first, then secure it inside the container by fixing to the container wall through steel wire.

2.One container can load 3 complete sets(we use rack to hold the upper sets).

3.Production leadtime is 10 days for 1 set, 20 days for 3 sets.





Applications:



1, All kinds of construction need long reach excavator.

2, Rod construction.

3, This long reach boom was exported to France.





Production Pictures:



Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight 1

Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight 2







Komatsu Excavator Parts 22 Meters Long Reach Boom with 4 Ton Counter Weight 3







Description:



1, Our company established on years 2006, we have over 10 years experience in designing and customize the long reach boom for all brand excavators.

2, Long reach boom are used for dredging rivers port construction, railway construction and groundwork construction, with high extensive operation scope, high efficiency and high security.

3, Original excavator performance.

4, Made by high strength steel plate.

5, Improves operation scope.

6, We can customize the long reach boom for all kinds of excavator as per your request. Operation scope 13 meters to 32 meters.

7, For this PC360 long reach boom include lubricant pipe system, hydraulic system, 1 bucket with 0.5cbm, 1 bucket cylinder, 1 linkage, 6 pins and 4 hoses, 1 counter weight with 4 ton.

8, If you need, we can add extra pipeline for you, to suit some extra application.

9, The stick cylinder of this long boom customer asked use the original stick cylinder for save cost, but if you need we prepare the stick cylinder for you, also no problem, we can make it for you.

10, The main material of this long boom is Q345B + Q690D, the top and bottom cover plate use Q690D, other place use Q345B. Pin’s material is 42CrMo4.

11, Our welding was by maual. Welding is protective-gas welding, the protective gas is 80% Argon and 20% CO2 mixed. This is golden standard for protective gas. Our welding is very good.

12, Before welding, we have use big edge milling machine mill(taper process) the edge of the sheet. So the welding can go to the internal of the steel-sheet and make the structure have higher performance.

13, Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application.

14, For all base,joint and other main structure of the long boom, we use boring machine adjust the precision after welding, to avoid the welding-stress leading to big tolerance.

15, The manufacture time about 15 days. Warranty time 6 month after installation.

16, We will also supply parts list for the long reach boom, so it’s easy for Maintenance and after-sales service.
