2000mm Width 10 Ton Container Q235B Mobile Yard Ramp

2000mm Width 10 Ton Container Q235B Mobile Yard Ramp

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  2000mm Width 10 Ton Container Q235B Mobile Yard Ramp Get Best Price

Product Details:
Place of Origin: China
Brand Name: Haide
Certification: CE/ISO
Model Number: HD-HGT10-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation(EXW,FOB or CIF price)
Packaging Details: putted into container directly, and then use steel wire fix it with container.
Delivery Time: within 15 days after get your deposit
Payment Terms: T/T, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Container Mobile Yard Ramp Purpose: Loading And Unloading Goods
Width: 2000mm Total Length: 11050mm
Safety Fence Height: 80mm Capacity: 10ton To 15ton Optional
Material Of Main Body: Q235B(SGC490) Adjust Range: 1200~1650mm
Warranty: 1 Year For Hydraulic System, 3 Year For Steel Structure Delivery Time: 15 Days
Color: Optional
High Light:

10 Ton Container Mobile Yard Ramp


2000mm Width Mobile Yard Ramp


Q235B container loading ramps

10 Ton Container Mobile Yard Ramp With 2000mm Width






1, Loading and unloading cargos for Container and Truck





1, This container ramp was exported to Malaysia.


2, Need to use 40' container to ship it. one 40' container can load 3pcs.



Width  2000mm
Total length 11050mm
Capacity 10ton
Adjust range 1200~1650mm


Manual pump Import from Italy, brand is " Oiltec"
Ramp weight 3100kg
Warranty 1 year for hydraulic system, 3 years for steel structure
Color Optional

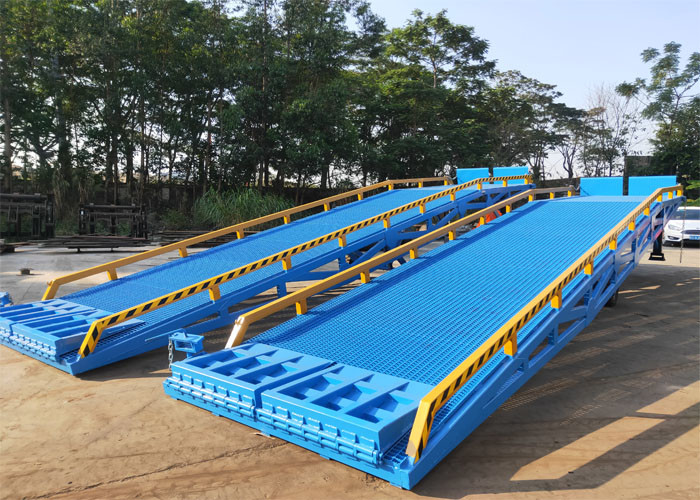

2000mm Width 10 Ton Container Q235B Mobile Yard Ramp 0





1, We have 14 years experience in designing and customize the dock/mobile ramp as per customer’s



2, Two moveable lip design facilitate the free lateral floating when the truck box floor move up and down


3, Two hydraulic retractable leg help to sustain the passage of heavy load during operation.


4, Two solid tyres provide excellent traction without worry of puncture.


5, The end bracket enable our dock ramp to be towable by forklift.


6, Capacity: 10ton and 15ton optional.


7, Steel grating on the slope floor prevent the forklift from slipping back during operation.

8, Top flat table is made of anti-skid steel plate.


9, We use Germany “BUCHER” hydraulic pump(optional) and it enable our yard ramp to be operated manually

with great ease,  eliminating the need for electrical operation.

10, Tapered lip edge provide a smooth transition between container and ramp.


11, Two safety chain secure the fixing between ramp and truck box.


12, Hydraulic pump adjust the ramp to the desired position.


13, Guard rail(curb) provide safety and direction for forklift movement.


14, Two rubber bumper absorb the shock between truck box and ramp.


15, The dimension for every part can be customized to suit to actual demand.
