Sand - Blasted Demolition Boom For Excavator Hyundai R380LC-9 With 22M Length

Product Details

Place of Origin: China

Brand Name: Haide

Certification: CE/ISO

Model Number: HD-SDB520-22M

Payment & Shipping Terms

Minimum Order Quantity: 1 kit

Packaging Details: film

Delivery Time: 20 days

Payment Terms: L/C, T/T

Get Best Price
Contact Now
Specifications
Highlight:

excavator ripper buckets

,

excavator trenching bucket

Excavator Model:
Hyundai R380LC-9
Boom Length:
11900 Mm
Middle Boom Length:
2400 Mm
Stick Length:
7700 Mm
Max Reach Height:
23000 Mm
Max Weight Of Attachment:
1200 Kg
Counter Weight:
3.5 Ton
Color:
As Customer Requires
Material:
Q345B+Q690D
Application:
Building Demolition And Sepcial Engineering
Warranty:
6 Months After Arrived Destination Port
Type:
High Reach Demolition Boom
Condition:
100%new
Certification:
CE, ISO,SGS
Surface Finish:
Sand-blasted And Painted
Oem:
Available
Suitable Excavator:
1-55 Ton
After-sales Service Provided:
Online Support
Weight:
1-10 Ton
Excavator Model:
Hyundai R380LC-9
Boom Length:
11900 Mm
Middle Boom Length:
2400 Mm
Stick Length:
7700 Mm
Max Reach Height:
23000 Mm
Max Weight Of Attachment:
1200 Kg
Counter Weight:
3.5 Ton
Color:
As Customer Requires
Material:
Q345B+Q690D
Application:
Building Demolition And Sepcial Engineering
Warranty:
6 Months After Arrived Destination Port
Type:
High Reach Demolition Boom
Condition:
100%new
Certification:
CE, ISO,SGS
Surface Finish:
Sand-blasted And Painted
Oem:
Available
Suitable Excavator:
1-55 Ton
After-sales Service Provided:
Online Support
Weight:
1-10 Ton
Description

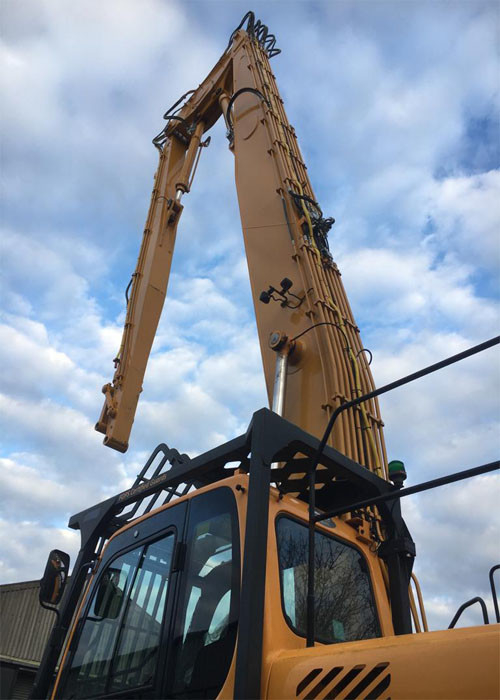

Sand - Blasted Demolition Boom For Excavator Hyundai R380LC-9 With 22M Length

High Reach Demolition Boom for Excavator Hyundai R380LC-9 with 22M Length





Description:



      High reach demolition boom is very popular in demolishing work.It have high work range,can demolish high buildings directly,also keep the excavator and operator long distance away from the buildings,supply

safty guard for demolition work.



1. Dongguan Haide Machinery is the biggest manufacturer of excavator long reach boom/stick and demolition boom in South of China now.



2. Our company established on years 2006, we have over 13 years experience in designing and customize the long reach boom for all brand excavators. 13 years manufacturer make us more and more perfessional on this areal.



3. The main material of this long boom is Q345B + Q690D, the top and bottom cover plate use Q690D, other place use Q345B. Pin’s material is 42CrMo4. When select the material of the long boom,according to the boom length,excavator model,attachment self-weight etc, most important is the working condition, we will select the right material to suggest you.

Sand - Blasted Demolition Boom For Excavator Hyundai R380LC-9 With 22M Length 0



Sand - Blasted Demolition Boom For Excavator Hyundai R380LC-9 With 22M Length 1



4. We will supply all the pipeline for you according to your application. For this Hyundai R380LC-9  22 meter high reach demolition boom, we prepared 3 kit extra pipes for attachments.And for the extra pipes,we prepared stop valve, so it's convenient for assembling and dismantling attachments.



5. Some cylinders of the high reach demolition boom can use original cylinders to save the cost.

- Middle boom cylinder (Cylinder-1) can use original stick cylinder to save cost.(As customer requirements,we also can prepare this cylinder ourselves.)

- Stick cylinder (Cylinder-2) can use original bucket cylinder to save cost.(As customer requirements,

we also can prepare this cylinder ourselves.)

- Bucket cylinder (Cylinder-3):we will prepare bucket cylinder

Sand - Blasted Demolition Boom For Excavator Hyundai R380LC-9 With 22M Length 2



6. We will issue the drawing and working diagram for your review  before you place the order.



7.We will prepare counter weight for the demolition boom we supplied you.

For this Hyundai R380LC-9 22meter demolition boom,we supply 3.5 ton counter weight.





Specification of this DX520 demolition boom:

Excavator model Hyundai R380LC-9
Total length 22000 mm
Boom  length 11900 mm
Middle boom length 2400 mm
Stick length 7700 mm
Max reach height 23000 mm
Max weight of attachment 1200 kg
Counter weight 3.5 ton
Warranty 6 months after arrived destination port





Specification of our series products of demolition boom:

Model SDB200 SDB250 SDB300 SDB350 SDB400 SDB450
Total length (mm) 15000 16000 18000 21000 24000 26000
Weight(kg) 4600 5000 6000 7500 9000 10000
Max reach height(mm) 15500 16800 18800 21800 25000 27200
Folding height(mm) 3100 3160 3290 3290 3420 3420
Max weight of Crusher(kg) 1500 2000 2000 2000 2200 2200
Excavator tonnage(ton) 20 25 30 35 40 45
