5 Cylinders Excavator Grapple , Hydraulic Orange Peel Grapple

China 5 Cylinders Excavator Grapple , Hydraulic Orange Peel Grapple supplier
5 Cylinders Excavator Grapple , Hydraulic Orange Peel Grapple supplier 5 Cylinders Excavator Grapple , Hydraulic Orange Peel Grapple supplier 5 Cylinders Excavator Grapple , Hydraulic Orange Peel Grapple supplier 5 Cylinders Excavator Grapple , Hydraulic Orange Peel Grapple supplier

Large Image :  5 Cylinders Excavator Grapple , Hydraulic Orange Peel Grapple

Product Details:

Place of Origin: China
Brand Name: Haide
Certification: ISO/CE
Model Number: YYZ200-DX225

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: film,plywood box
Delivery Time: With in 25 days after get the deposit
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Excavator Model: Doosan DX225 Claw No.: 5 Pcs
Material: Q345B + Hardox Max Open: 1830 Mm
Closed Volume: 0.59m3 Warranty: 6 Months After Installation

5 Cylinders Excavator Grapple , Hydraulic Orange Peel Grapple





Description:



1. Hydraulic orange peel grab also called scrap grab,it’s a high efficient equipment to handle steel scrap,

iron,metal scrap,mineral,rubbish or other irregular massive material,it’s very popular in recycling company.

2. It's made up from follow main parts:base,claws,cylinders and other parts.

3.Usually have 2~6pcs claws.

4.Base and main material of claws is Q345B,claw tine is Hardox400

5.Orange peel grab is easy for installation,it’s do not need extra pipe line,it can be connect to the pipe line

ofbucket cylinders.

6.Our grab have special design,all claws can open and closed at same time,do not out of sync.

7.Main base have covers,each cylinder piston also have protection cover.

8.We will supply steel pipe for connection to bucket cylinder hose joint.







Specification:

Model YYZ200

Suitable Excavator tonnage

 17~23 ton
Weight 1080 kg
Closed Volume 0.59 m3
Self Height (Closed) 1780 mm
Claw No. 5 pcs
Max Open 1830 mm





Application:



1.Digging construction foundation, deep hole or load soil,sand,coal,macadam etc.

2.Loading,stacking and transportation steel scrap,crushed aggregates, saw dust, ballast in iron and steel

enterprises,port,wharf,railway station,storage etc.

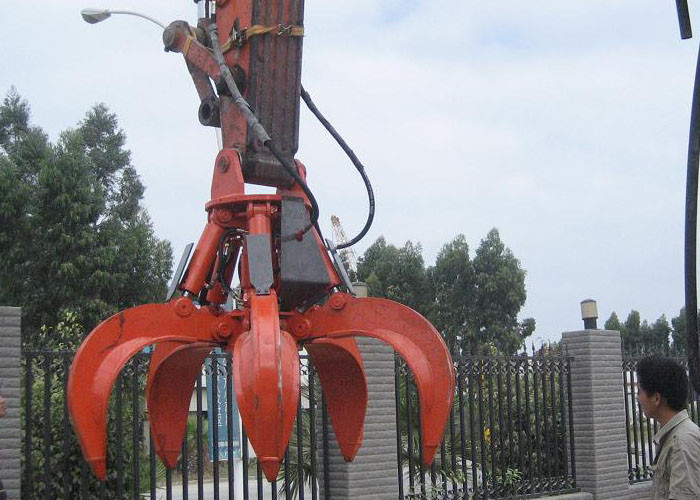

Testing pictures:

5 Cylinders Excavator Grapple , Hydraulic Orange Peel Grapple



5 Cylinders Excavator Grapple , Hydraulic Orange Peel Grapple
