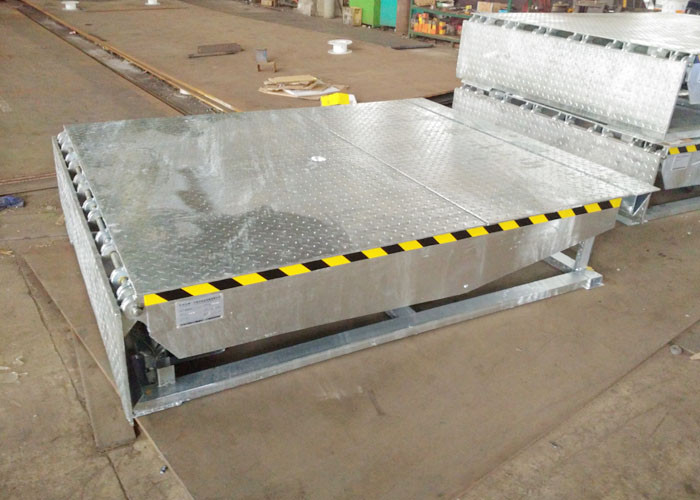

Hot Dip galvanized Hydraulic dock leveler with 10 ton capacity

Hot Dip galvanized Hydraulic dock leveler with 10 ton capacity

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Hot Dip galvanized Hydraulic dock leveler with 10 ton capacity Get Best Price

Product Details:
Place of Origin: China
Brand Name: Haide
Certification: CE/ISO
Model Number: HD-HGT10-Z-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation(EXW,FOB or CIF price)
Packaging Details: film,and put it directly to container.
Delivery Time: 25 days
Supply Ability: 60 sets per month
Detailed Product Description
Platform Width: 1830mm Platform Length: 2280mm
Height: 490mm Dynamic Capacity: 10 Ton
Adjust Range: +300mm/-300mm Main Deck Thickness: 8mm
Lip Board Thickness: 16mm Size Standard: 6ft*8ft Standard
High Light:

mobile dock leveller


mechanical dock leveler


Hot Dip galvanized Hydraulic dock leveler with 10 ton capacity and bumpers





Hot Dip galvanized dockleveler is usually used in food wearhouse,meat&vegetables wearhouse,



In above work condition,have higher environmental requirements,zero-tolerance for rust.


Hot Dip galvanized dockleveler have more than 10 years anti-rust capacity.It's a good choice for some special-requirements wearhouse and yard.


We can customize all kinds of hot dip galvanized hydraulic dockleveler for customers.

1. We can manufacture the Hydraulic dock leveler with capacity 10ton up to 25ton.

2. We can manufacture it as per your any requirements.

3. Operation process: Push "UP" button, platform begin to rise. When it rise to highest point, push "EXTEND" button, lip extend out. Then press "DOWN" button, platform and lip lower down to rest on the truck box bed. When loading&unloading is over, then press "UP" botton, platform and lip begin to rise. When platform and lip get away from the truck box bed, then press "RETRACTION" button, lip retract. The push "DOWN" button, then dock leveler restore to original stored position.

4. Two laminated rubber bumper with woven fiber inside can withstand any shock between the truck and dock.




Specification of this dock leveler:

Equipment Specification(W*L*H): 1830mm*2440mm*490mm
Pit Dimension(W*L*H): 1870mm*2280mm*500mm
Dynamic Capacity: 10 ton
Adjust range: +300mm/-300mm
Main deck thickness: 8mm
Lip board thickness: 16mm
Power pack: : Italy "Hydr-APP" 0.75 KW 340~415V 3P 50Hz
Warranty: 365 days after installation for all, 5 years warranty for the steel structure.



All our standard dock leveler dimensions:

Model Specification(W*L*H)mm Pit Dimension(W*L*H)mm Adjust range Lip board(W*L*T)
6*6 1830*1830*490 1870*1680*500 +250mm/-200mm 1830*400*15
6.5*6 1980*1830*490 2020*1680*500 1980*400*15
7*6 2130*1830*490 2170*1680*500 2130*400*15
6*8 1830*2440*490(590) 1870*2280*500(600) +300mm/-300mm 1830*400*15
6.5*8 1980*2440*490(590) 2020*2280*500(600) 1980*400*15
7*8 2130*2440*490(590) 2170*2280*500(600) 2130*400*15
6*10 1830*3050*490(590) 1870*2880*500(600) +400mm/-300mm
If the height is 590mm:
6.5*10 1980*3050*490(590) 2020*2880*500(600) 1980*400*15
7*10 2130*3050*490(590) 2170*2880*500(600) 2130*400*15
