15M Q690 Volve EC210B Excavator Long Boom With Grab

15M Q690 Volve EC210B Excavator Long Boom With Grab
15M Q690 Volve EC210B Excavator Long Boom With Grab 15M Q690 Volve EC210B Excavator Long Boom With Grab 15M Q690 Volve EC210B Excavator Long Boom With Grab 15M Q690 Volve EC210B Excavator Long Boom With Grab

Large Image :  15M Q690 Volve EC210B Excavator Long Boom With Grab

Product Details:
Place of Origin: China
Brand Name: Haide
Certification: CE/ISO
Model Number: HD-LDB200
Payment & Shipping Terms:
Minimum Order Quantity: 1 kit
Price: USD100~USD10000
Packaging Details: film
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 30 units per month
Detailed Product Description
Excavator Model: Volve EC210B Boom Length: 9600 Mm
Arm Length: 5400 Mm Max Reach Height: 15100 Mm
Grab: 12T Level Counter Weight: Without
Color: Volve Grey Material: Q345B+Q690D
Application: Handing The Scrap Warranty: 6 Months After Arrived Destination Port
Type: Excavator Handing Boom Condition: 100% New
Certification: CE, ISO,SGS Surface Finish: Sand-blasted And Painted
Oem: Available Suitable Excavator: 20-25ton
After-sales Service Provided: Online Support Weight: 5.5 Ton
Highlight:

Volve EC210B Excavator Long Boom

,

Q690 Excavator Long Boom

,

15m excavator extension arm

15M Handing Boom With Grab For Excavator Volve EC210B With Q690 Material





Description:





1. Dongguan Haide Machinery is the biggest manufacturer of excavator boom/stick in South of China now.



2. Our company established on years 2006, we have over 14 years experience in designing and customize the booms for all brand excavators. 14 years manufacture experiences make us more and more perfessional on this areal.



3. The main material of the pile boom is Q345B + Q690D, the top and bottom cover plate use Q690D, other place use Q345B. Pin’s material is 42CrMo4. When select the material of the boom, according to the boom length,excavator model,attachment self-weight etc, most important is the working condition, we will select the right material to suggest you.



4. We will supply all the pipe line for you according to your application. And for the extra pipes,we prepared stop valve, so it's convenient for assembling and dismantling attachments.



5. This handing boom total length with 15M, boom length 9.6M, arm length 5.4M. Use a 40ft container to load it.



6. This handing boom not include the boom cylinder, it's will use the original cylinder. But if you need us prepare it for you, we also can make.



7. This handing boom included 2 pcs arm cylinders.  No need bucket cylinder, and H-linkages.



8. We will issue the drawing and working diagram for you review before you place the order.



9. A good boom was depends on the good material and good welding. Material we use Q690D, with our very good welding made the booms more good quality.

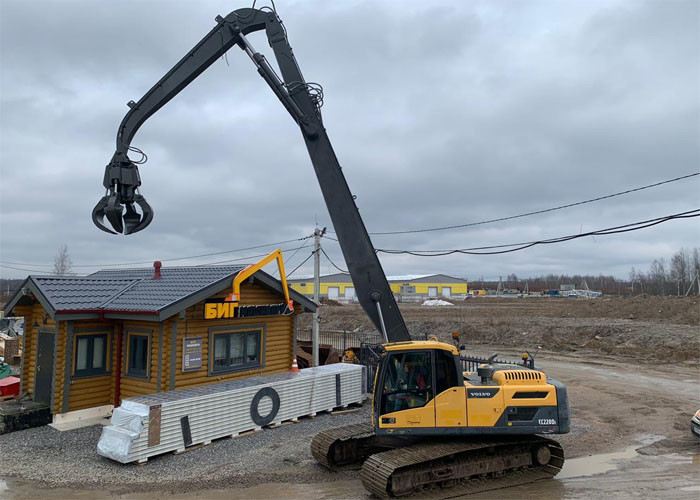

Picture:

15M Q690 Volve EC210B Excavator Long Boom With Grab 0





Certificate:

15M Q690 Volve EC210B Excavator Long Boom With Grab 1



15M Q690 Volve EC210B Excavator Long Boom With Grab 2



15M Q690 Volve EC210B Excavator Long Boom With Grab 3
