Single Cylinder Hydraulic Dock Levelers For Sea Port Physical Distribution

China Single Cylinder Hydraulic Dock Levelers For Sea Port Physical Distribution supplier
Single Cylinder Hydraulic Dock Levelers For Sea Port Physical Distribution supplier Single Cylinder Hydraulic Dock Levelers For Sea Port Physical Distribution supplier Single Cylinder Hydraulic Dock Levelers For Sea Port Physical Distribution supplier Single Cylinder Hydraulic Dock Levelers For Sea Port Physical Distribution supplier

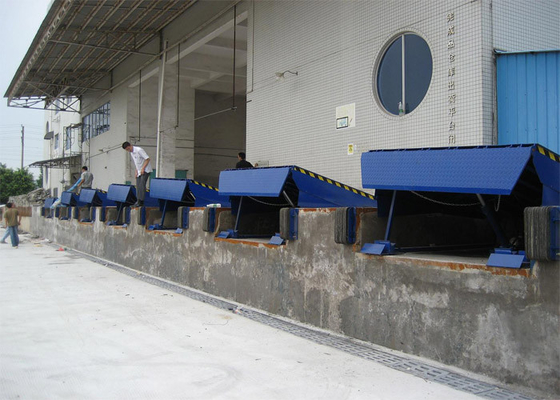

Large Image :  Single Cylinder Hydraulic Dock Levelers For Sea Port Physical Distribution

Product Details:

Place of Origin: China
Brand Name: Haide
Certification: CE/ISO
Model Number: HD-HGT10-7*8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation(EXW,FOB or CIF price)
Packaging Details: film,and put it directly to container.
Delivery Time: 25 days
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Equipment Size: 2130*2440*490mm Pit Dimension: 2170*2280*500mm(600mm)
Lip Board Dimension: 2130*400*15mm Dynamic Capacity: 10 Ton
Adjust Range: +300mm/-300mm Main Deck Thickness: 8mm
Lip Board Thickness: 15mm Power Pack: Italy "Hydr-app"



Single Cylinder Hydraulic Dock Levelers For Sea Port Physical Distribution







Application:

1, For truck and container loading and unloading goods.

2, Use on warhouse, sea port.

3, Physical distribution.

4, Logistics management.

5, Open- type dock, Saw-type dock, Wall-through dock.







Specifications:



Equipment Specification(W*L*H) 2130*2440*490mm
Pit Dimension(W*L*H) 2170*2280*500mm(600mm)
Lip Board Dimension

2130*400*15mm

Material Riffled plate
Dynamic Capacity 10ton
Adjust range +300mm/-300mm
Main deck thickness 8mm
Lip board thickness 15mm
Power pack Italy "Hydr-app"







Description:



1, Modern warehouse always have dock. However, usually there is gap between dock and truck(container, or trailer) box floor in height direction. So loading equipment can not go in and out of truck(container or trailer) directly. Haide dock leveler is just designed to overcome the above problem.



2, Haide dock leveler can connect dock with truck effectively enabling the loading equipment get in and out of truck and container smoothly.



3, This dock leveler is standard type,with single-cylinder design.



4, We also can customize all other dock leveler for customer. Such as Non-standard type double-cylinder type and Air-bag dock leveler.



5, The size for this dock leveler is 7*8, with 10 ton capacity.



6,Capacity:6, 10, 15, 20ton, is optional. Just let me know your request.



7, platform size is 2130*2440*490mm. Pit dimension should be 2170*2280*500mm(600mm).


8, Fitted with 28ton safey strut. Safety strut is convenient for mantenance and cleaning.



9, Ear-type hinge design and Frame-type bottom desgin.



10, "I"-beam reinforcement ribs design under the deck, which make our dock leveller much stronger than

the common box-shape design.



11, Downward adjustment can be either automatic design or pull-chain design.


12, For shipment and easy move, there have forklift hole designed on our dock leveler.

Single Cylinder Hydraulic Dock Levelers For Sea Port Physical Distribution

13. All the dock leveler we supply will include two laminated bumper. Bumper thickness is 100mm.



14, The power pack was imported from Italy, brand is "Hydr-app", including motor, valve, pump. Oil seal is from Japan "NOK" brand.



15, This dock leveler operated by control panel, we will prepare the control panel for you.



16, Warranty: 365 days after installation for hydraulic system, 5 years warranty for the steel structure.



17, This container dock leveler was exported to Ecuador, after loaded into container, we'll use the steel wire to fix the dock leveler with container.

Single Cylinder Hydraulic Dock Levelers For Sea Port Physical Distribution







Product in factory:



Single Cylinder Hydraulic Dock Levelers For Sea Port Physical Distribution

Single Cylinder Hydraulic Dock Levelers For Sea Port Physical Distribution
