Construction Hydraulic Tilting Bucket for Komatsu PC200 Excavator

Good quality Excavator Long Arm for sales
Good quality Excavator Long Arm for sales
I'm Online Chat Now

Construction Hydraulic Tilting Bucket for Komatsu PC200 Excavator

China Construction Hydraulic Tilting Bucket for Komatsu PC200 Excavator supplier
Construction Hydraulic Tilting Bucket for Komatsu PC200 Excavator supplier Construction Hydraulic Tilting Bucket for Komatsu PC200 Excavator supplier Construction Hydraulic Tilting Bucket for Komatsu PC200 Excavator supplier Construction Hydraulic Tilting Bucket for Komatsu PC200 Excavator supplier

Large Image :  Construction Hydraulic Tilting Bucket for Komatsu PC200 Excavator

Product Details:

Place of Origin: China
Brand Name: Haide
Certification: ISO/CE
Model Number: HD-QXD200-1800

Payment & Shipping Terms:

Minimum Order Quantity: 2 unit
Packaging Details: film plywood box
Delivery Time: 10 days
Contact Now
Detailed Product Description
Excavator Model: Komatsu Width: 1800mm
Bucket Capacity: 0.9 Cum Tilt Degree: +/- 45 Degree
Cutting Edge: 25mm Cutting Edge Quantity: 2pcs
Cylinder Quantity: 2pcs Color: Komatsu Yellow
Manufacture Time: 10 Days Warranty: 6 Month



Construction Hydraulic Tilting Bucket for Komatsu PC200 Excavator







Application:



-Tilt cleaning.

-Multi-excavating.

-Handling soft material







Description:



1. Driven by hydraulic pressure, high efficiency and convenient.



2. In rugged work condition,If the excavator have a tilt bucket,do not need to move often for adjusting position. It's convenient and high efficient.It will be very popular in the future.



3. Material: Q345B with a bolted cutting edge.



4. The width is optional, as customer requested, we make this tilt bucket with 1800mm width. But if you want to make more wider or more shorter, also no problem.



5. We also have Q420D and Q690D for optional.



6. The tilt degree is +/-45 degree. If you need smaller degree, also no problem, we can customize for you.



7. This tilt bucket with 2 pcs cylinder, but if very small excavator, only 1 cylinder.



8. The cylinder Max. suffer from stress is 32MPa. We have cylinder protection guard for cylinder.



9. Hardox450 is high hardness steel, If you need NM360 or Hardox450 as the cutting edge or side plate, also no problem, let me know freely.



10. For main pin(connect pick-up-head to mainbody),we double sealed for greace at both side.



11.  All our pins is harden pins,and we prepare bushing for all pins, and each pin&bushing have grease seals.

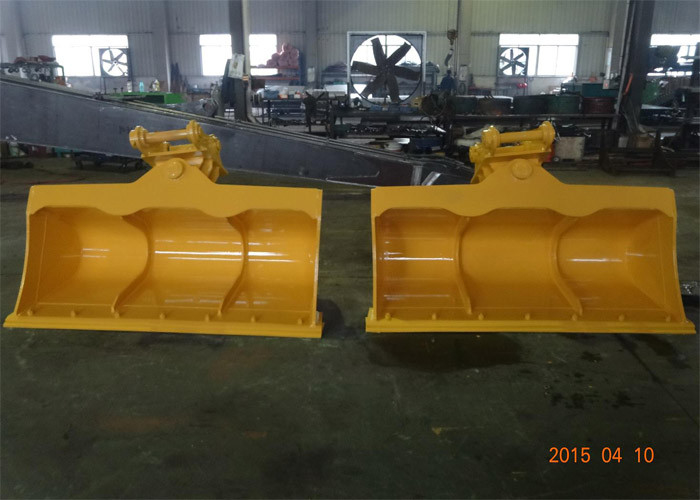

Tilt bucket pictures in Workshop:





Construction Hydraulic Tilting Bucket for Komatsu PC200 Excavator

Construction Hydraulic Tilting Bucket for Komatsu PC200 Excavator

Construction Hydraulic Tilting Bucket for Komatsu PC200 Excavator







Specification:



Excavator model Komatsu PC200
Bucket width 1800mm
Bucket capacity 0.9 cum
Tilt degree +/- 45 degree
Cylinders 2 pcs
Cutting edge material Q345B
Cutting edge thickness 25mm
Cutting edge quantity 2 pcs
Warranty 6 month 6 month
Installation size Standard dimension
