CE Approved Mechanical Excavator Log Grapple for Komatsu PC120 Excavator

Good quality Excavator Long Arm for sales
Good quality Excavator Long Arm for sales
I'm Online Chat Now

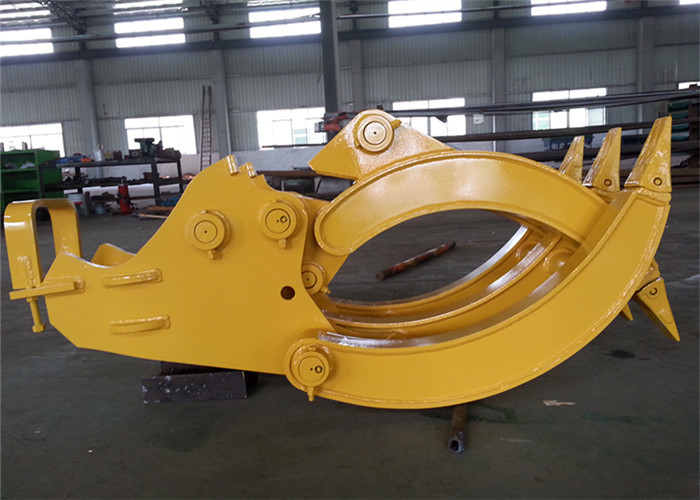

CE Approved Mechanical Excavator Log Grapple for Komatsu PC120 Excavator

China CE Approved Mechanical Excavator Log Grapple for Komatsu PC120 Excavator supplier

Large Image :  CE Approved Mechanical Excavator Log Grapple for Komatsu PC120 Excavator

Product Details:

Place of Origin: CHINA
Brand Name: Haide
Certification: CE/ISO
Model Number: ZM120

Payment & Shipping Terms:

Minimum Order Quantity: 1Kit
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Film/Plywood Box
Delivery Time: Within 15 days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30Kit Per Month
Detailed Product Description
Production Name: Wood Grapple Application: 10~15ton Excavator
Main Material: Q345B+Hardox Max Open: 1800mm
Max Closed Area: 0.43m2 Max Self Height: 1460mm
Min Closed Gap: 290mm Self Weight: 680Kg
Warranty: 6 Month After Installation

CE Approved Mechanical Excavator Log Grapple for Komatsu PC120 Excavator
    ​

  • Characteristics&advantages:

1. It is economically designed, and based on mechanical design, it holds very usefull performance for excavator.



2. It adopts the design of five claws, while works it can embrace wider touching face so increase the steady of holding, and the claw is suitable for anly material holding, especially for rough things.



3. All it parts follow our standard producing procedure, all parts adopts high tensile steel and strickly tested after work.



4. It is simply designed but takes high working performance, with excavator sticks connected it can be opened and operated smoothly.



  • Features:

1. Can be hydraulic type or mechanical type. Hydraulic type is fitted by two  cylinder.Mechanical type is driven by the bucket cylinder .



2. Cylinder's pistons are well protected by steel shroud preventing them from being damaged.



3. All pins are greaseable (fitted with grease nipple)



4. The cutting edge can be teeth made of cast steel or a welded patch made of wear-resistant steel.



5. Can be rotary type or non-rotary type.Rotary type is fitted with a integrated rotator which is capable of 360 °  rotating.



6. Two  extra pair of oil pipe ,valve and pedal switch has to be added to the excavator for rotary type.



7. Mounting bracket can be 1-pin structure or 2-pin structure . 2-pin structure enable the grapple to tilt.



  • Specifications:

Model

Excavator tonnage(ton)

Self weight(kg)

Max open (L/min)

Max closed area(m2)

Max self height

(mm)

Min closed gap(mm)

ZM70

6~9

340

1200

0.23

1290

190

ZM120

10~15

680

1300

0.43

1640

290

ZM200

16~24

1100

1600

0.87

1890

360

ZM300

25~30

1400

2300

1.2

2130

450

ZM400

31~36

1950

2800

1.83

2370

520

ZM500

37~45

2200

3200

2.51

2630

630



  • Description:

1. Can be hydraulic type or mechanical type. Hydraulic type is driven by two vertical cylinder(one cylinder plus one linkage design is also available for synchronizing).Mechanical type is driven by the bucket cylinder .

2. Cylinder's pistons are well protected by steel shroud preventing them from being damaged.

3. Oil hose are covered by plastic casing for protection .

4.The cutting edge can be teeth made of cast steel or a welded patch made of wear-resistant steel.

5. Can be rotary type or non-rotary type.Rotary type is fitted with a integrated rotator which is capable of 360 °  rotating.

6. Two  extra pair of oil pipe and valve has to be added to the excavator for rotary type log grab.One extra pair of oil pipe and valve has to be added to the excavator  for non-rotary hydraulic type log grab.



  • Services:​

​1. Manufacturer:As a many years experience manufacturer of attachements on excavator,we        provide full support to our customers includes competitive price,after-sale servises,fast delivery and etc.



2. Lead time: we have a great deal of products and spare parts in stock. On leading time we have big advantages as a manufacuturer, usually in 10-15 days after order confirmation.



3. Package: the goods are packed in strong fumigated wooden cases. They could also packed according to customers' request.
CE Approved Mechanical Excavator Log Grapple for Komatsu PC120 Excavator
CE Approved Mechanical Excavator Log Grapple for Komatsu PC120 Excavator
CE Approved Mechanical Excavator Log Grapple for Komatsu PC120 Excavator
