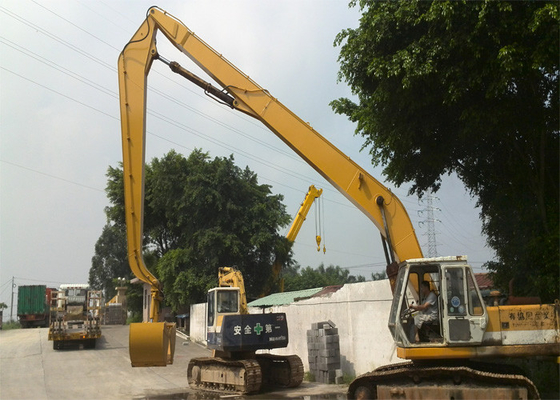

KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket

Good quality Excavator Long Arm for sales
Good quality Excavator Long Arm for sales
I'm Online Chat Now

KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket

China KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket supplier
KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket supplier KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket supplier KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket supplier KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket supplier

Large Image :  KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket

Product Details:

Place of Origin: China
Brand Name: Haide
Certification: CE/ISO
Model Number: LDB200-HD900

Payment & Shipping Terms:

Minimum Order Quantity: 1kit
Price: Negotiation(EXW,FOB or CIF price)
Packaging Details: Film
Delivery Time: Within 15 days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 30 kits per month
Contact Now
Detailed Product Description
Product Name: Long Reach Boom Excavator Model: HD900
Total Length: 16 M Bucket: 0.6 Cum Clamshell Bucket
Counter Weight: 1.5 Ton Material: Q345B + Q690D
Stick Cylinder: Use Original Warranty: 6 Months After Installation



KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket





Description:

1, Our company established on years 2006, we have over 10 years experience in designing and customize the long reach boom for all brand excavators.

2, Long reach boom are used for dredging rivers port construction, railway construction and groundwork construction, with high extensive operation scope, high efficiency and high security.

3, Original excavator performance.

4, Made by high strength steel plate.

5, Improves operation scope.

6, We can customize the long reach boom for all kinds of excavator as per your request. Operation scope 13 meters to 32 meters.

7, The this HD900 long reach boom include lubricant pipe system, hydraulic system, 1 bucket with 0.6cbm, 1 bucket cylinder, 1 linkage, 6 pins and 4 hoses.

8, Stick cylinder of the long boom use the original stick cylinder, but if you need we prepare the stick cylinder for you, also no problem, we can make it.

9, This HD900 long reach boom is specialized for clamshell bucket, so the end the stick design is bend made it more good performance. It's difference with normal long reach stick.







KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket





10, Another difference is the stick cylinder. This long reach boom stick cylinder was installed on the boom bottom, not on the top of boom.

KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket



11. And we also prepared 1.5ton counter weight for this special equipment.

KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket



12, If you need, we can add extra pipeline for you, to suit some extra application.

13, Our welding was by maual. Welding is protective-gas welding, the protective gas is 80% Argon and 20% CO2 mixed. This is golden standard for protective gas.

14, The main material of this long boom is Q345B + Q690D, the top and bottom cover plate use Q690D, other place use Q345B. Pin’s material is 42CrMo4.

15.Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application.

16, Before welding, we have use big edge milling machine mill(taper process) the edge of the sheet. So the welding can go to the internal of the steel-sheet and make the structure have higher performance.

17, For all base,joint and other main structure of the long boom, we use boring machine adjust the precision after welding, to avoid the welding-stress leading to big tolerance.

18, The manufacture time about 15 days. Warranty time 6 month after installation.

19, We will also supply parts list for the long reach boom, so it’s easy for Maintenance and after-sales service.





Applications:



1, For grab at construction site

2, All kinds of construction need long reach excavator.







Specifications:







Boom length

9000 mm

Arm length

7000 mm

Max extensive scope(A)

16100 mm

Max dig depth(B)

12340 mm

Max dig height(D)

13510 mm

Max dig depth in vertical wall(C)

10948 mm

Max unloading height(E)

11510 mm

Min rotate radius(F)

4200 mm

Bucket volume

0.6m3

Counter weight

1.5 ton

Folding height

3210mm



KATO HD900 Excavator Long Reach Boom Arm For 0.6cbm Clamshell Bucket
