10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres

Good quality Excavator Long Arm for sales
Good quality Excavator Long Arm for sales
I'm Online Chat Now

10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres

China 10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres supplier
10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres supplier 10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres supplier 10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres supplier 10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres supplier

Large Image :  10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres

Product Details:

Place of Origin: China
Brand Name: Haide
Certification: CE/ISO
Model Number: HD-HGT10-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation(EXW,FOB or CIF price)
Packaging Details: putted into container directly, and then use steel wire fix it with container.
Delivery Time: within 12 days after get your deposit
Payment Terms: T/T or L/C
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Container Mobile Ramp Purpose: Loading And Unloading
Width: 2000mm Total Length: 11050mm
Safety Fence Height: 80mm Capacity: 10ton To 15ton Optional
Material Of Main Body: Q235B(SGC490) Adjust Range: 1200~1650mm
Warranty: 1 Year For Hydraulic System, 3 Year For Steel Structure Delivery Time: 12 Days
Color: Optional

10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres





Description:



1, We have many years experience in designing and customize the dock ramp as per customer’s

requirement.

2, Two moveabble lip design facilitate the free lateral floating when the truck box floor move up and down.

3, Two hydraulic retractable leg help to sustain the passage of heavy load during operation.

4, Two solid tyres provide excellent traction without worry of puncture.

5, The steel structure has been sand-blasted and the painting has been baked under 170℃ temperature,

ensuring the maximum painting adherence and be free of rusting.

6, The end bracket enable our dock ramp to be towable by forklift.

7, Capacity: 10ton, 15ton.

8, Steel grating on the slope floor prevent the forklift from slipping back during operation..
9, Top flat table is made of anti-skid steel plate.

10, We use Italy “Oiltec” hydraulic pump(optional) and it enable our yard ramp to be operated manually

with great ease,  eliminating the need for electrical operation.
11, Tapered lip edge provide a smooth transition between container and ramp.

12, Two safety chain secure the fixing between ramp and truck box.

13, Hydraulic pump adjust the ramp to the desired position.

14, Guard rail(curb) provide safety and direction for forklift movement.

15, Can be 3-side loading or 2-side loading by adding lip on sides.

16, Two rubber bumper absorb the shock between truck box and ramp.

17, The dimension for every part can be customized to suit to actual demand.



10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres







Specifications:



10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres



Width  2000mm
Total length 11050mm
Capacity 10ton
Adjust range 1200~1650mm
Material

Q235B(SGC490)

Manual pump Import from Italy, brand is " Oiltec"
Ramp weight 3100kg
Warranty 1 year for hydraulic system, 3 years for steel structure
Color Optional





Application



1, Loading and unloading cargos



Others

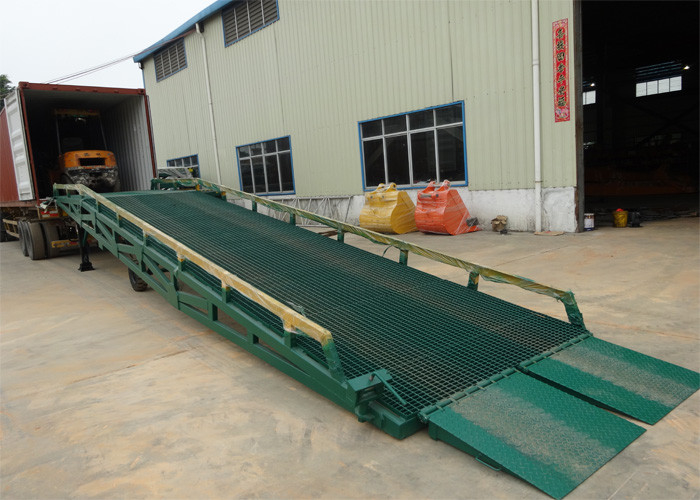

1, Below pictures ramp was exported to Malaysia

2, Need to use 40' container to ship it. one 40' container can load 2pcs.



10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres



10 Ton - 15 Ton Portable Steel Loading Dock Ramps With Solid Tyres
