YANMAR Vio55 Excavator Grapple Support Rod Quick Hitch Joint Design

Product Details

Place of Origin: China

Brand Name: Haide

Certification: CE/ISO

Model Number: HD-ZZ60-Vio55

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: film,plywood box

Delivery Time: 15 days

Get Best Price
Contact Now
Specifications
Highlight:

grapple for excavator

,

excavator buckets

Excavator Model:
Yanmar Vio55
Self Weight:
420 Kg
Max Open:
1100 Mm
Driven Power:
Excavator Bucket Cylinder
Material:
Q345B+Hardox450
Warranty:
6 Months
Excavator Model:
Yanmar Vio55
Self Weight:
420 Kg
Max Open:
1100 Mm
Driven Power:
Excavator Bucket Cylinder
Material:
Q345B+Hardox450
Warranty:
6 Months
Description
YANMAR Vio55 Excavator Grapple Support Rod Quick Hitch Joint Design



YANMAR Vio55 Excavator Grapple Support Rod Quick Hitch Joint Design



Specification:

Excavator Model Yanmar Vio55
Max open 1000 mm
Self weight 420 kg
Material Q345B + Hardox450
Support rod Include
Warranty 6 months





Application:

- grabbing

- Loading & Unloading

- Sorting

- Good attachments for Multi-excavators.





Description:



    Mechanical Excavator Grapple is high efficiency in grabbing,loading,unloading,sifting,etc.



    Mechanical Excavator Grapple is driven by Excavator bucket cylinder,do not need extra pipes,easy for installation.Also can suit for quick coupler.So it's popular in multi-excavators which need to deal all kinds of different works.



    Because do not have hydraulic system,Mechanical Grapple price usually is much cheaper than hydraulic grapple.



We can design all kinds of grab according to your requirements.

1.quick hitch design,no quick hitch design.

YANMAR Vio55 Excavator Grapple Support Rod Quick Hitch Joint Design 0



2.Material of Mechanical grapple is Q345B+Hardox450.

-Main body is Q345B

-Jaw-tip is Hardox450,Hardox450 is a wearable steel.

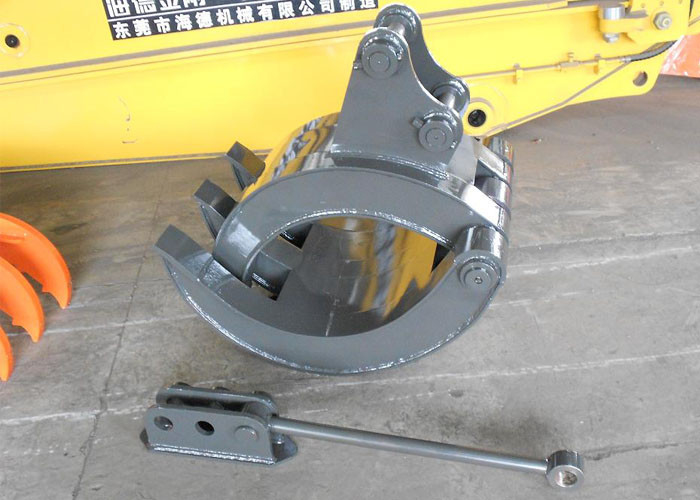

3.All the Mechanical Grapple we supply,we will supply support rod.Suport rod also have a base,the base will be welded on excavator stick to fix the bottom-jaw of Grapple.

YANMAR Vio55 Excavator Grapple Support Rod Quick Hitch Joint Design 1



4.According to your project requirements,we can design the different shape main body for you.



5.Our grapple usually "Box" design,higher performaance for structure,better than single plate design.







Workship pictures:

YANMAR Vio55 Excavator Grapple Support Rod Quick Hitch Joint Design 2



YANMAR Vio55 Excavator Grapple Support Rod Quick Hitch Joint Design 3
