High Demolition Front End Kobelco Excavator Long Arm 16 Meter

Good quality Excavator Long Arm for sales
Good quality Excavator Long Arm for sales
I'm Online Chat Now

High Demolition Front End Kobelco Excavator Long Arm 16 Meter

China High Demolition Front End Kobelco Excavator Long Arm 16 Meter supplier
High Demolition Front End Kobelco Excavator Long Arm 16 Meter supplier High Demolition Front End Kobelco Excavator Long Arm 16 Meter supplier High Demolition Front End Kobelco Excavator Long Arm 16 Meter supplier High Demolition Front End Kobelco Excavator Long Arm 16 Meter supplier

Large Image :  High Demolition Front End Kobelco Excavator Long Arm 16 Meter

Product Details:

Place of Origin: China
Brand Name: Haide
Certification: CE/ISO
Model Number: LDB300-SK230-16

Payment & Shipping Terms:

Minimum Order Quantity: 1kit
Price: Negotiation(EXW,FOB or CIF price)
Packaging Details: Film
Delivery Time: Within 25 days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 30 kits per month
Contact Now
Detailed Product Description
Total Length: 16 M Boom Length: 8900mm
Stick Length: 7100mm Excavator Model: Kobelco SK330
Bucket: 0.8 Cum Counter Weight: NO
Warranty: 6 Months After Installation Stick Cylinder: Use Original



High Demolition Front End Kobelco Excavator Long Arm 16 Meter





Description:



1. We have many years experience in designing and customize all kinds of long boom for all kinds of excavators.



2. We have detailed dimension of Kobelco Series excavator,we can customize the long reach boom for your Kobelco excavator.

For this Kobelco SK330 excavator,this model have stopped production.The original stick is broken,so customer asked us to customize one kit long reach boom for the original base,bucket capacity is 0.8 cum.

Both bucket cylinder and stick cylinder are use original.



3. Main sheet Material of this long boom is Q345B.Pin’s material is 42CrMo4.



4. Welding is protective-gas welding,the protective gas is 80% Argon and 20% CO2 mixed.This is golden standard for protective gas.



5. Before welding,we have use big edge milling machine mill the edge of the sheet.So the welding can go to the internal of the steel-sheet and make the structure have higher performance



6. For all base,joint and other main structure of the long boom,we use boring machine adjust the precision after welding,to avoid the welding-stress leading to big tolerance.



7. We will prepare lubricant pipe system,hydraulic system,bucket,bucket cylinder,linkage,pins and hoses for the long boom we supply you.



8. Stick cylinder of the long boom,can use original stick cylinder to save the cost,if you need the stick cylinder,we also can prepare for you.



9. If necessary,we can prepare 1 kit or 2 kit extra auxiliary pipe line for the long boom attachment.



10. We will also supply parts list for the long reach boom,so it’s easy for Maintenance and after-sales service





Specifications:



Boom length

8900mm

Arm length

7100mm

Max extensive scope

15600mm

Max dig depth

11700mm

Max dig height

13100mm

Max dig depth in vertical wall

10400mm

Max unloading height

10900mm

Min rotate radius

4900mm

Bucket volume

0.8 m3

Counter weight

NO

Folding height

3200mm





Applications:



1. Customer use long reach boom to replace the broken original standard boom and stick.

2. After installation of the long reach boom,customer will use this excavator for rent business.







Other pictures:



Original boom

High Demolition Front End Kobelco Excavator Long Arm 16 Meter

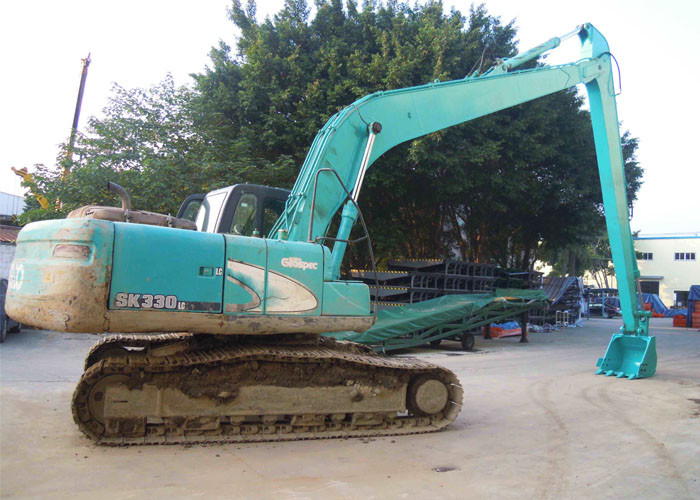

Completed installation

High Demolition Front End Kobelco Excavator Long Arm 16 Meter



High Demolition Front End Kobelco Excavator Long Arm 16 Meter
