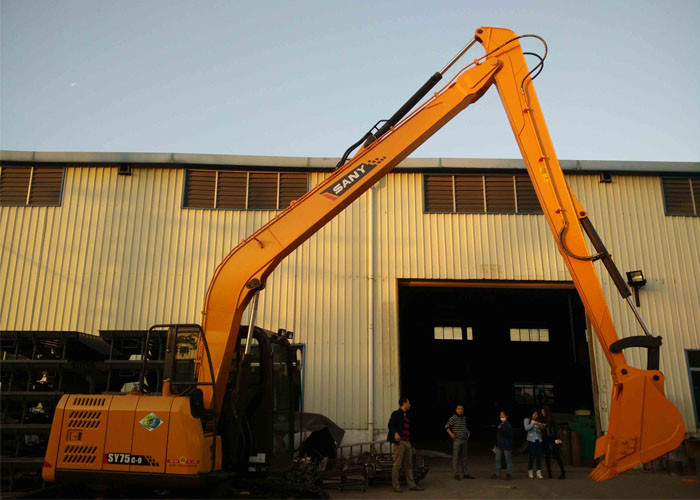

Professional 10 Meter Excavator Boom And Stick for Sany SY75c-9 Mini Excavator

Product Details

Place of Origin: China

Brand Name: Haide

Certification: CE/ISO

Model Number: LDB70-SY75-10

Payment & Shipping Terms

Minimum Order Quantity: 1kit

Price: Negotiation(EXW,FOB or CIF price)

Packaging Details: Film

Delivery Time: Within 15 days after received your payment

Payment Terms: T/T or L/C

Supply Ability: 30 kits per month

Get Best Price
Contact Now
Specifications
Highlight:

excavator long reach boom arm

,

long reach arm

Excavator Model:
Sany SY75C-9
Total Length:
10 M
Boom Length:
5600 Mm
Stick Length:
4400 Mm
Max Extensive Scope:
9400mm
Bucket Capacity:
0.25 Cum
Excavator Model:
Sany SY75C-9
Total Length:
10 M
Boom Length:
5600 Mm
Stick Length:
4400 Mm
Max Extensive Scope:
9400mm
Bucket Capacity:
0.25 Cum
Description
Professional 10 Meter Excavator Boom And Stick for Sany SY75c-9 Mini Excavator

Professional 10 Meter Excavator Boom And Stick for Sany SY75c-9 Mini Excavator



Description:



1, We specialize in customizing all kinds of long reach boom for all brand excavators.

2, We have detailed dimension of Sany SY75C-9,we can customize this long boom for your Sany SY75 excavator

3, Main sheet Material of this long boom is Q345B.Pin’s material is 42CrMo4.

4, Welding is protective-gas welding,the protective gas is 80% Argon and 20% CO2 mixed.This is golden standard for protective gas

5, Before welding,we have use big edge milling machine mill the edge of the sheet.So the welding can go to the internal of the steel-sheet and make the structure have higher performance

6, For all base,joint and other main structure of the long boom,we use boring machine adjust the precision after welding,to avoid the welding-stress leading to big tolerance.

7, We will prepare lubricant pipe system,hydraulic system,bucket,bucket cylinder,linkage,pins and hoses for the long boom we supply you.

8, Stick cylinder of the long boom,can use original stick cylinder to save the cost,if you need the stick cylinder,we also can prepare for you.





Specifications:



Boom length

5600mm

Arm length

4400mm

Max extensive scope

9400mm

Max dig depth

6850mm

Max dig height

7900mm

Max dig depth in vertical wall

5600mm

Max unloading height

6800mm

Min rotate radius

3700mm

Bucket volume

0.25 m3

Counter weight

NO

Folding height

2500mm









Applications:



1. Loading & Unloading sand,corn and other cargos on port,smart and high efficiency.

2. Construction.





Other factory pictures:



Professional 10 Meter Excavator Boom And Stick for Sany SY75c-9 Mini Excavator 0



Professional 10 Meter Excavator Boom And Stick for Sany SY75c-9 Mini Excavator 1



Professional 10 Meter Excavator Boom And Stick for Sany SY75c-9 Mini Excavator 2
