30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight

Good quality Excavator Long Arm for sales
Good quality Excavator Long Arm for sales
I'm Online Chat Now

30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight

China 30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight supplier
30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight supplier 30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight supplier 30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight supplier 30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight supplier 30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight supplier

Large Image :  30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight

Product Details:

Place of Origin: China
Brand Name: Haide
Certification: CE/ISO
Model Number: HD-SDB520-30M

Payment & Shipping Terms:

Minimum Order Quantity: 1 kit
Packaging Details: film
Delivery Time: 30 days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Excavator Model: Hyundai R520LC-9 Boom Length: 18000 Mm
Middle Boom Length: 2500 Mm Stick Length: 9500 Mm
Max Reach Height: 30500 Mm Max Weight Of Attachment: 1200 Kg
Counter Weight: 7.5 Ton Color: As Customer Requires
Material: Q345B+Q690D Application: Building Demolition And Sepcial Engineering
Warranty: 6 Months After Arrived Destination Port Type: High Reach Demolition Boom
Condition: 100%new Certification: CE, ISO,SGS
Surface Finish: Sand-blasted And Painted Oem: Available
Suitable Excavator: 1-55 Ton After-sales Service Provided: Online Support
Weight: 1-10 Ton

30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight





Description:



      High reach demolition boom is very popular in demolishing work.It have high work range,can demolish high buildings directly,also keep the excavator and operator long distance away from the buildings,supply

safty guard for demolition work.



1. Dongguan Haide Machinery is the biggest manufacturer of excavator long reach boom/stick and demolition boom in South of China now.



2. Our company established on years 2006, we have over 13 years experience in designing and customize the long reach boom for all brand excavators. 13 years manufacturer make us more and more perfessional on this areal.



3. The main material of this long boom is Q345B + Q690D, the top and bottom cover plate use Q690D, other place use Q345B. Pin’s material is 42CrMo4. When select the material of the long boom,according to the boom length,excavator model,attachment self-weight etc, most important is the working condition, we will select the right material to suggest you.





4. We will supply all the pipeline for you according to your application. For this Hyundai R520LC-9  30M meter high reach demolition boom, we prepared 3 kit extra pipes for attachments.And for the extra pipes,we prepared stop valve, so it's convenient for assembling and dismantling attachments.

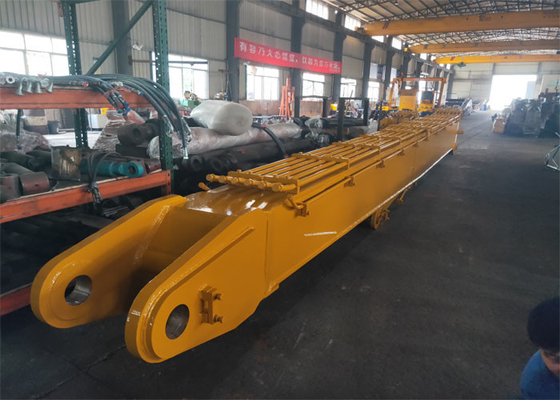

5. This demolition boom total length with 30M, boom length 18M, middle boom length 2.5M, arm length 9.5M.

40ft container length only 12M, and 45ft container only 13.5M, but this boom is 18M. So for easy shipment, we make the boom with 2-section design. Section one length is 7M, section two is 11.09M.

30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight



30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight



6. Some cylinders of the high reach demolition boom can use original cylinders to save the cost.

- Middle boom cylinder (Cylinder-1) can use original stick cylinder to save cost.(As customer requirements,we also can prepare this cylinder ourselves.)

- Stick cylinder (Cylinder-2) can use original bucket cylinder to save cost.(As customer requirements,

we also can prepare this cylinder ourselves.)

- Bucket cylinder (Cylinder-3):we will prepare bucket cylinder

30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight



7. We will issue the drawing and working diagram for your review  before you place the order.



8.We will prepare counter weight for the demolition boom we supplied you.

For this Hyundai R520LC-9 30meter demolition boom,we supply 7.5 ton counter weight.

30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight



9. A good demolition boom was depends on the good material and good welding. Material we use Q690D, with our very good welding made the booms more good quality.

30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight



30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight



30M High Reach Demolition Boom For Excavator Hyundai R520LC With 7.5ton Counterweight





Specification of this R520 demolition boom:

Excavator model Hyundai R520LC-9
Total length 30000 mm
Boom  length 18000 mm
Middle boom length 2500 mm
Stick length 9500 mm
Max reach height 30500 mm
Max weight of attachment 1200 kg
Counter weight 7.5 ton
Warranty 6 months after arrived destination port





Specification of our series products of demolition boom:

Model SDB200 SDB250 SDB300 SDB350 SDB400 SDB450
Total length (mm) 15000 16000 18000 21000 24000 26000
Weight(kg) 4600 5000 6000 7500 9000 10000
Max reach height(mm) 15500 16800 18800 21800 25000 27200
Folding height(mm) 3100 3160 3290 3290 3420 3420
Max weight of Crusher(kg) 1500 2000 2000 2000 2200 2200
Excavator tonnage(ton) 20 25 30 35 40 45
